EPRO PR9376/010-001 Hall Effect Speed/ Proximity Sensor
Description
| Manufacture | EPRO |
| Model | PR9376/010-001 |

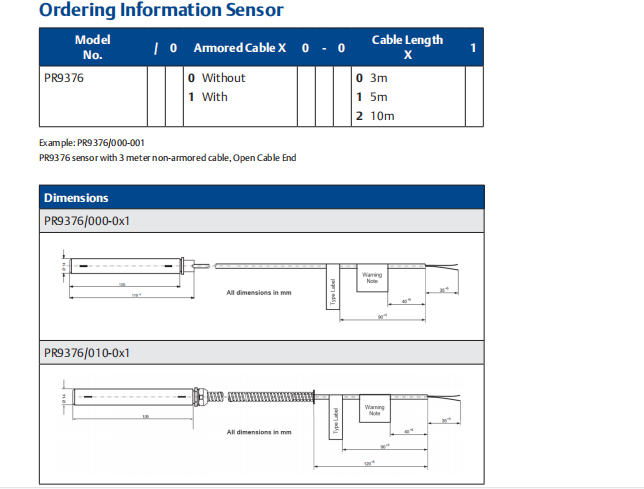

| Ordering information | PR9376/010-001 |
| Catalog | PR9376 |
| Description | EPRO PR9376/010-001 Hall Effect Speed/ Proximity Sensor |
| Origin | Germany (DE) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Hall Effect Speed/
Proximity Sensor
Non-contact Hall effect sensor designed for speed or proximity measurements
on critical turbomachinery applications such as steam, gas and hydro turbines,
compressors, pumps, and fans.
Dynamic Performance
Output
1 AC cycle per revolution/gear tooth
Rise/Fall Time
1 µs
Output Voltage (12 VDC at 100 Kload)
High >10 V / Low <1V
Air Gap
1 mm (Module 1)
1.5 mm (Module ≥2)
Maximum Operating Frequency
12 kHz (720,000 cpm)
Trigger Mark Limited to
Spur Wheel, Involute Gearing Module 1
Material ST37
Measuring Target
Target/Surface Material
Magnetic soft iron or steel
(non stainless steel)
Environmental
Reference Temperature
25°C (77°F)
Operating Temperature Range
-25 to 100°C (-13 to 212°F)
Storage Temperature
-40 to 100°C (-40 to 212°F)
Sealing Rating
IP67
Power Supply
10 to 30 VDC @ max. 25mA
Resistance
Max. 400 Ohms
Material
Sensor – Stainless steel; Cable - PTFE
Weight (Sensor only)
210 grams (7.4 oz)
