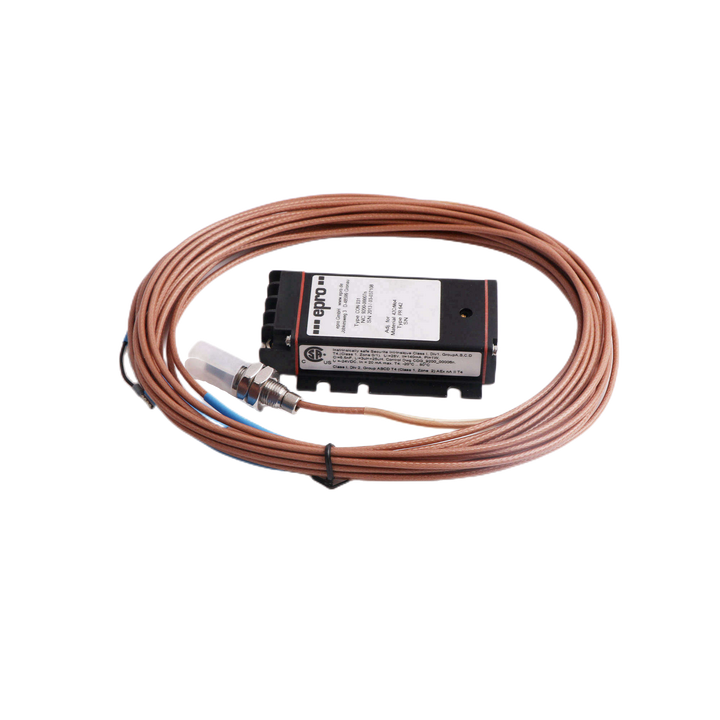

EPRO PR6424/000-020 16mm Eddy Current Sensor
Description
Manufacture | EPRO |
Model | PR6424/000-020 |
Ordering information | PR6424/000-020 |
Catalog | PR6424 |
Description | EPRO PR6424/000-020 16mm Eddy Current Sensor |
Origin | United States (US) |
HS Code | 85389091 |
Dimension | 16cm*16cm*12cm |
Weight | 0.8kg |
Details
The PR 6424 is a non-contact eddy current transducer with a rugged construction and designed for extremely critical turbomachinery applications such as steam, gas, compressor and hydroturbo machinery, blowers and fans.
The purpose of a displacement probe is to measure position or shaft movement without contacting the measured surface – the rotor.
In the case of sleeve bearing machines, the shaft is separated from the bearing material by a thin film of oil.
The oil acts as a dampener and therefore the vibration and position of the shaft are not transmitted through the bearing to the bearing case.
The use of case vibration sensors is discouraged for monitoring sleeve bearing machines since the vibration produced by shaft motion or position is greatly attenuated through the bearing oil film.
The ideal method of monitoring shaft position and motion is by mounting a non-contact eddy sensor through the bearing, or inside the bearing, measuring the shaft motion and position directly.
The PR 6424 is commonly used to measure vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position,and air gaps.
Features:
Measurement principle:Eddy current principle: Non-contact measurement using the eddy current principle. Detect position, distance or vibration by measuring the interaction between the electromagnetic field and the metal target.
High accuracy: Provides high resolution and high repeatability measurement results, suitable for precision industrial applications.
Design and size:Outer diameter: 16mm, suitable for installation in environments with limited space.
Structure: Rugged design that can withstand vibration and shock in industrial environments.
Installation and integration:
Mounting method: Usually designed for standard thread installation, easy to fix on equipment or machines.
Interface: Equipped with standard electrical interface, supports connection with industrial control system or data acquisition system.
