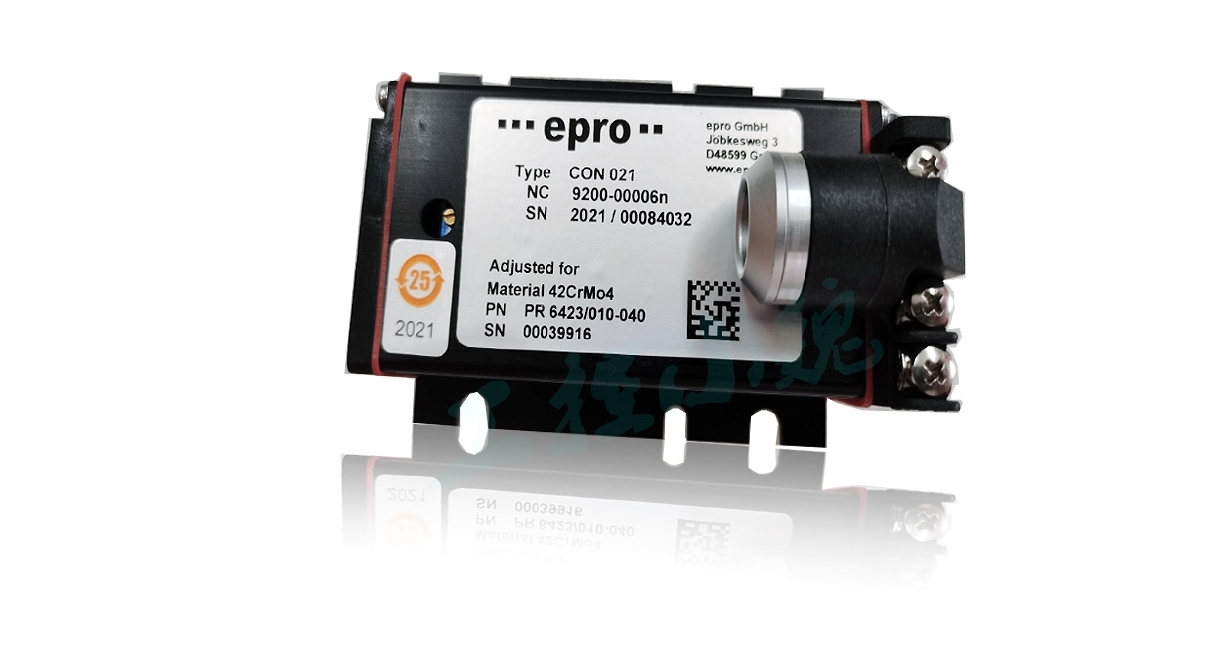

EPRO CON021/913-040 is an eddy current sensor PLC module.

It is used to convert the analog signal of Eddy current sensor into a standard output signal for easy integration with control system or data acquisition system.

It is a non-contact sensor that uses the eddy current principle to measure the displacement, vibration or thickness of a conductive target.

Eddy current sensors are widely used in non-destructive testing (NDT) in industrial applications, such as detecting weld cracks, measuring coating thickness and monitoring machine vibration.

Frequency Range (-3 dB) 0 to 20000 Hz

Rise Time <15 µs NOTE: Designed for PR6422, PR6423, PR6424, PR6425, PR6426, PR 6453

For extended range use: CON021/91x-xxx PR6425 always requires extended range converter

Environmental Operating Temperature Range -30 to 100°C (-22 to 212 °F) Shock and Vibration 5g @ 60 Hz @ 25°C (77°F)

Protection Class IP20 Power & Electrical Supply Voltage Range -23V to -32V (Output Range -4V to -20V) -21V to -32V (Output Range -2V to -18V) Physical Housing Material LMgSi 0.5 F22 Weight ~120 grams (4.24 oz) Mounting 4 Screws M5x20 (Included in Delivery)

Connections: Transduer Self-Locking Lemo-Plug Supply/Output Screw Terminal Type (max.1.5mm2 , wire)
