16-Channel Output Relay Module Specifications

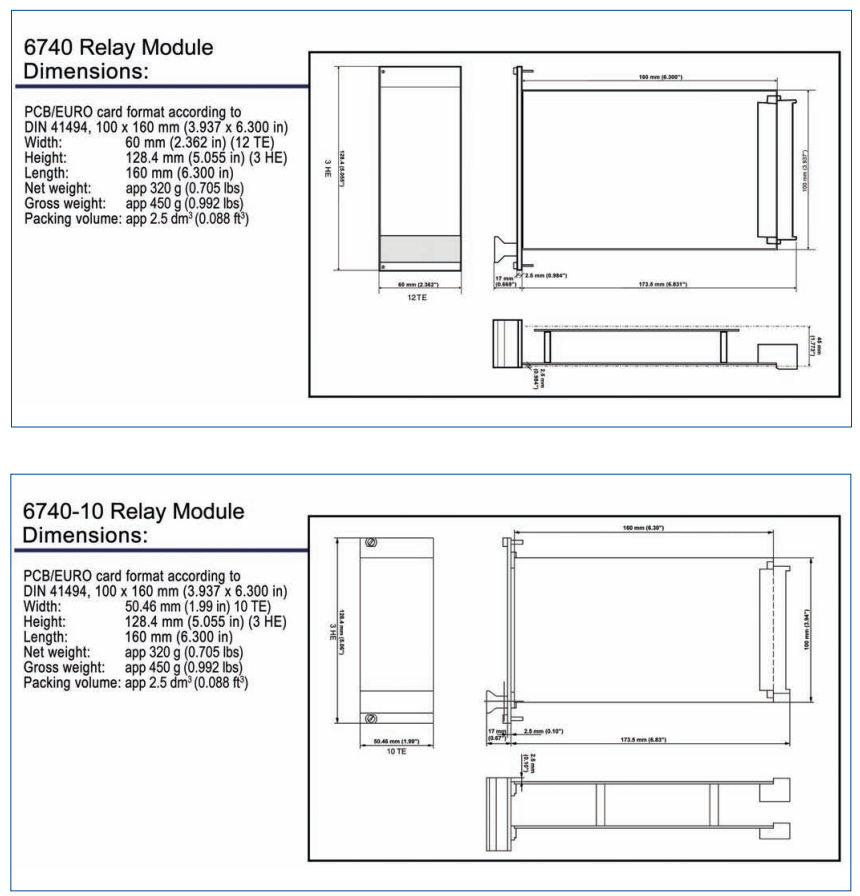

■ 3U size, 2-slot plu-in module decreases cabinet space requirements in half from traditional 6U size cards ■ API 670 compliant, hot swappable module ■ 60 inputs, 30 logical expressions, 16 relay outputs ■ 6740 is a 12TE wide module for IMR6000 series rack ■ 6740-10 is the 10TE wide module for the IMR6500 series rack The CSI 6500 Machinery Health Monitor is an integral part of PlantWeb® and AMS Suite. PlantWeb provides operationsintegrated machinery health combined with the Ovation® and DeltaV™ process control system. AMS Suite provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early. The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery. This 2-slot monitor is used together with the CSI 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery.

Any channel clear, alert or alarm signal can be selected as input to the 16-Channel Output Relay Module. Use Boolean logic, apply time delay, and select an output relay to complete the configuration. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration
