A6500-RC System Relay Card

The 16-Channel Output Relay Module is designed for high reliability for the plant’s most critical rotating machinery. This monitor is used together with the AMS 6500 ATG to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors, and hydro turbo machinery. Any channel clear, alert, or alarm signal can be selected as input to the 16-Channel Output Relay Module. Use Boolean logic, apply time delay, and select an output relay to complete the configuration. Easy-to-use software provides graphical logic displays that guide the user pictorially through configuration.

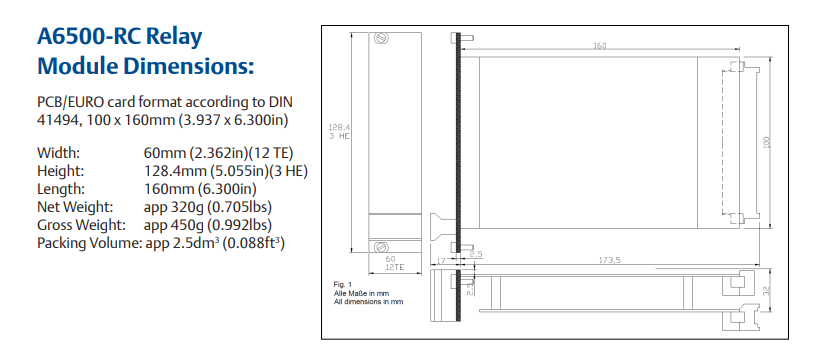

The AMS 6500 Machinery Health Monitor is an integral part of PlantWeb® and AMS software. PlantWeb provides operations - integrated machinery health combined with the Ovation® and DeltaV™ process control system. AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early. Digital Input Number of Inputs 66 Logic Low Level 0V to 3V Not active Logic High Level 13V to 32V active Open Input Open input detect as not active Rated Current 1 mA Rated Power 24 mW Relay Output Number of Outputs 16 Type SPDT Maximum Voltage Capacity 32V DC / 48V AC Output Load AC1: 48V / 2A DC1: 32V / 2A DC-13: 24V / 1A AC-15: 24V / 2A Turn-on / Turn-off Time 10 ms NO contact 13 ms NC contact Without logic processing time Rated Current 2 A Rated Power 96 W
