CI185 VMD185-020-AT-CA-F Interface Output Cable
Description
| Manufacture | Others |
| Model | CI185 |
| Ordering information | VMD185-020-AT-CA-F |
| Catalog | Vibration Monitoring |
| Description | CI185 VMD185-020-AT-CA-F Interface Output Cable |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Output Current: 4-20 mA DC proportional to RMS velocity (mm/s)
Velocity Range: See table below
Frequency Response: 2 Hz to 1 kHz ±10 %
Dynamic Range: 50 g peak
Mounted Resonance: 5 kHz min
Isolation: Base isolated
Operating Temp Range: -25 to 90 ºC
Temperature Sensitivity: 0.08 %/ºC
Transverse Sensitivity: Less than 5 %

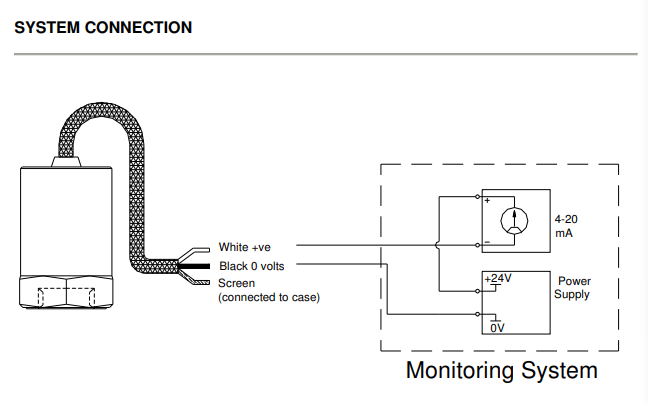

Supply Voltage: 12-32 Volts DC (4-20 mA) Loop powered
Standard Cable length: 5 meters armoured PTFE
Maximum Cable length: 1000 meter, for IS version see ATX009

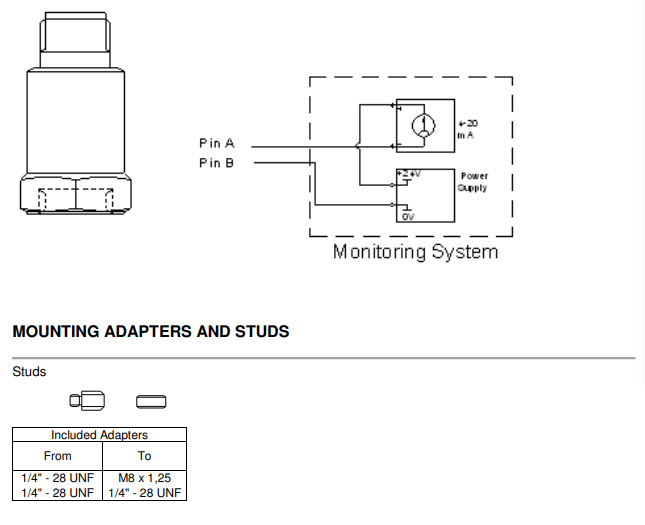

Mating Connector: 2 pin MS for CT connection
Case Material: Stainless steel
Weight: 150 gms (nominal)
Sealing: IP67
Mounting Torque: 8 Nm
Options: Ranges, side exit cable, filters, mounting threads, other cable length
