CE620 444-620-000-011-A1-B100-C01 Piezoelectric Accelerometer
Description
| Manufacture | Others |
| Model | CE620 |
| Ordering information | 444-620-000-011-A1-B100-C01 |
| Catalog | Probes & Sensors |
| Description | CE620 444-620-000-011-A1-B100-C01 Piezoelectric Accelerometer |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

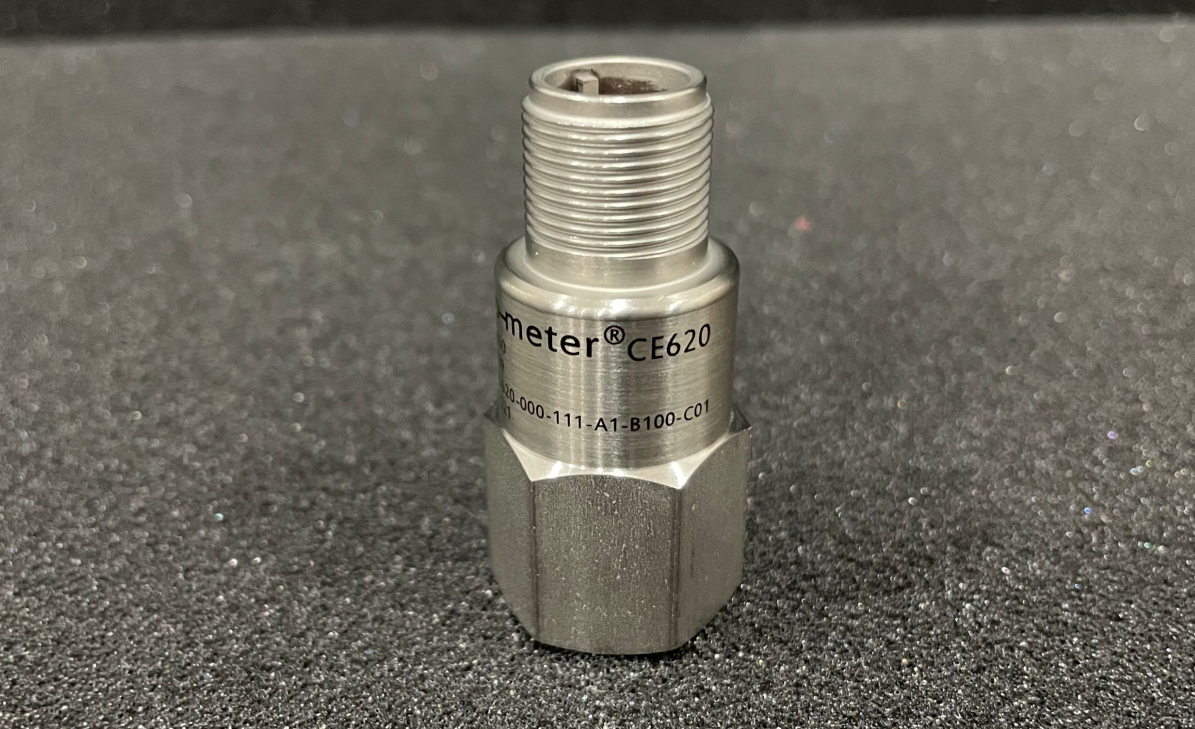

CE620 444-620-000-111 piezoelectric accelerometer with integrated electronics Description:
The CE620 piezoelectric accelerometer with integrated electronics is a general-purpose vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments.
The CE620 is an industry standard IEPE (integrated electronics piezo electric) vibration sensor that requires a constant current power supply and provides a dynamic vibration output signal (AC voltage) on a bias level (DC voltage). It is available with a sensitivity of either 100 or 500 mV/g.
The CE620 is available as a sensor only or fitted with an integral cable that is protected by a stainless-steel overbraid.
Sensor only versions allow one of a range of different cable assemblies to be used to connect the sensor to the monitoring system, depending on the application and environment.
The CE620 is available in standard versions for use in standard (non-hazardous) areas and Ex versions for installation in hazardous areas.
Features:
Voltage output signal: 100 or 500 mV/g
Frequency response:
0.5 to 14000 Hz (100 mV/g versions)
0.2 to 3700 Hz (500 mV/g versions)
Temperature range:
−55 to 120°C (100 mV/g versions)
−55 to 90°C (500 mV/g versions)
