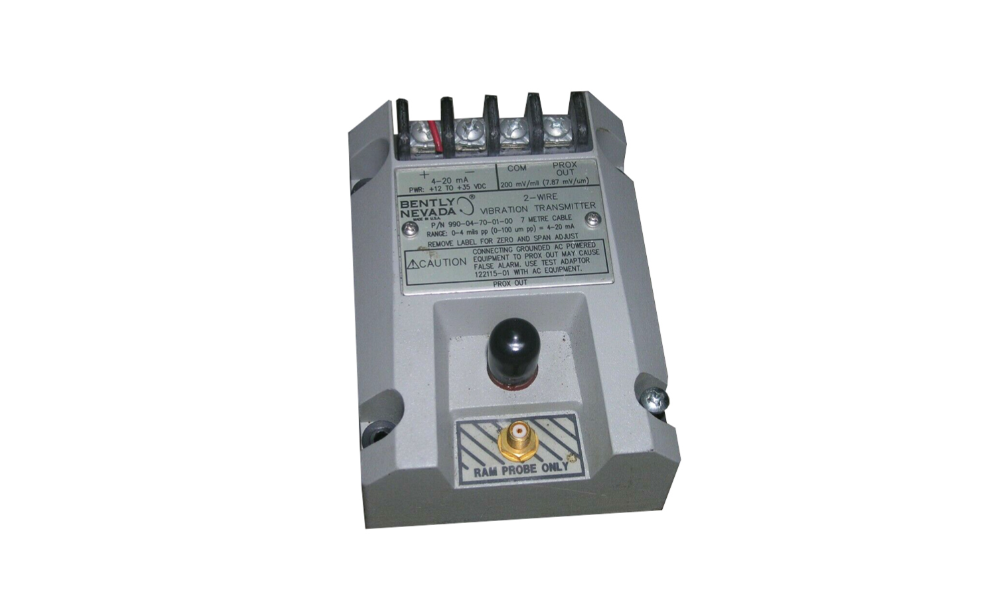

The Bently Nevada 990-04-70-01-00 990 vibration transmitter can be equipped with a certificate of origin. It has full scale option 04 for 0-4 mils pp (0-100µm pp), system length option 70 for 7.

0 meters (23.0 feet), mounting option 01 for 35mm DIN rail pressure plate, and agency approval option 00 for no approval required.

It accepts 1 non-contact 3300 NSv proximity probe and extension cable, requires a +12 to +35 Vdc input at the transmitter terminals, has an operating temperature of -35°C to +85°C (-31°F to +185°F), a storage temperature of -51°C to +100°C (-60°F to +212°F), and weighs 0.54 Kg.

Features
Customizability: Certificate of origin can be added, and different options are available for each parameter, which can be selected according to specific needs, such as full scale, system length, mounting method, etc.

Input compatibility: Accepts 1 non-contact 3300 NSv proximity probe and extension cable for easy use with specific probe systems.
Wide voltage input: Can operate in a voltage range of +12 to +35 Vdc, with strong adaptability to power requirements and can adapt to different power supply environments.
