Bently Nevada 3500/93 135799-02 Display Interface Module
Description
| Manufacture | Bently Nevada |
| Model | 3500/93 |
| Ordering information | 135799-02 |
| Catalog | 3500 |
| Description | Bently Nevada 3500/93 135799-02 Display Interface Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

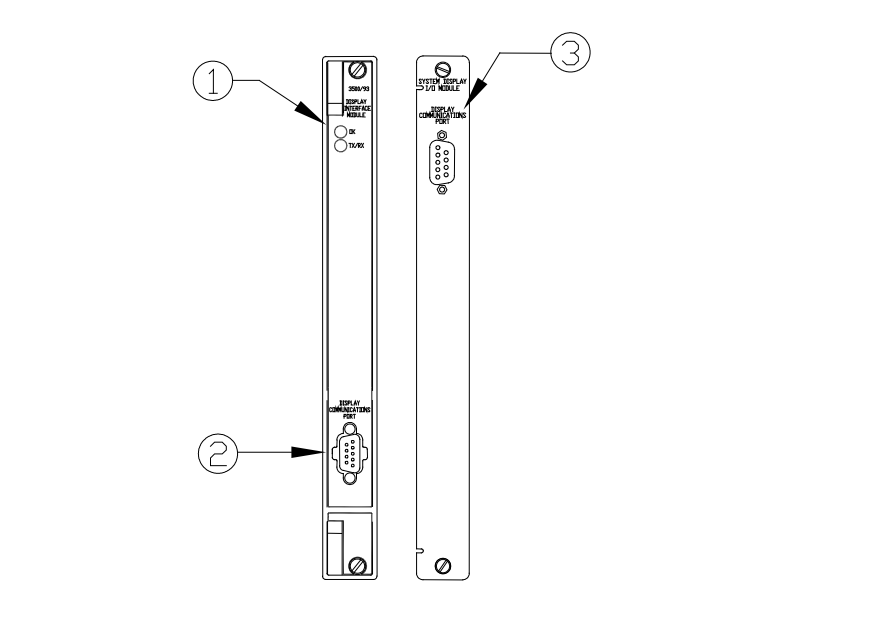

The Bently Nevada 3500/93 135799-02 is a display interface module developed by Bently Nevada Corporation as part of the 3500 Series.

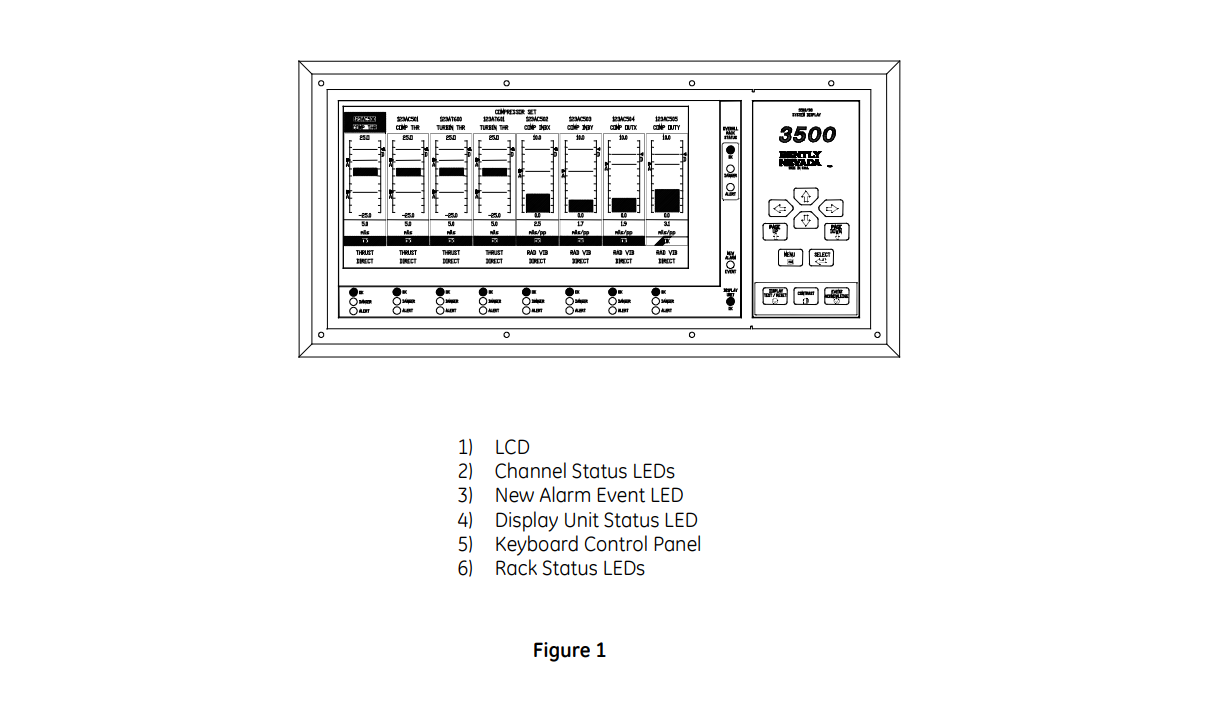

The system display provides local or remote visualization of all machinery protection system data stored in the rack in accordance with the requirements of API Standard 670 and is configured using the 3500 Rack Configuration software.
Features
For applications requiring cable lengths greater than 100 feet, an external power supply and cable adapter are required.
For applications using backlit display units, an external power supply is required and is available for 115 volt and 230 volt connections.
The external power supply/terminal block mounting kit facilitates the installation of an external power supply and can be used in a stand-alone mounting enclosure or a user-supplied enclosure.
Specifications
Power consumption
Display unit and display interface module consume 15.5 watts maximum.
-01 display unit consumes 5.6 watts maximum.
-02 display unit consumes 12.0 watts maximum.
