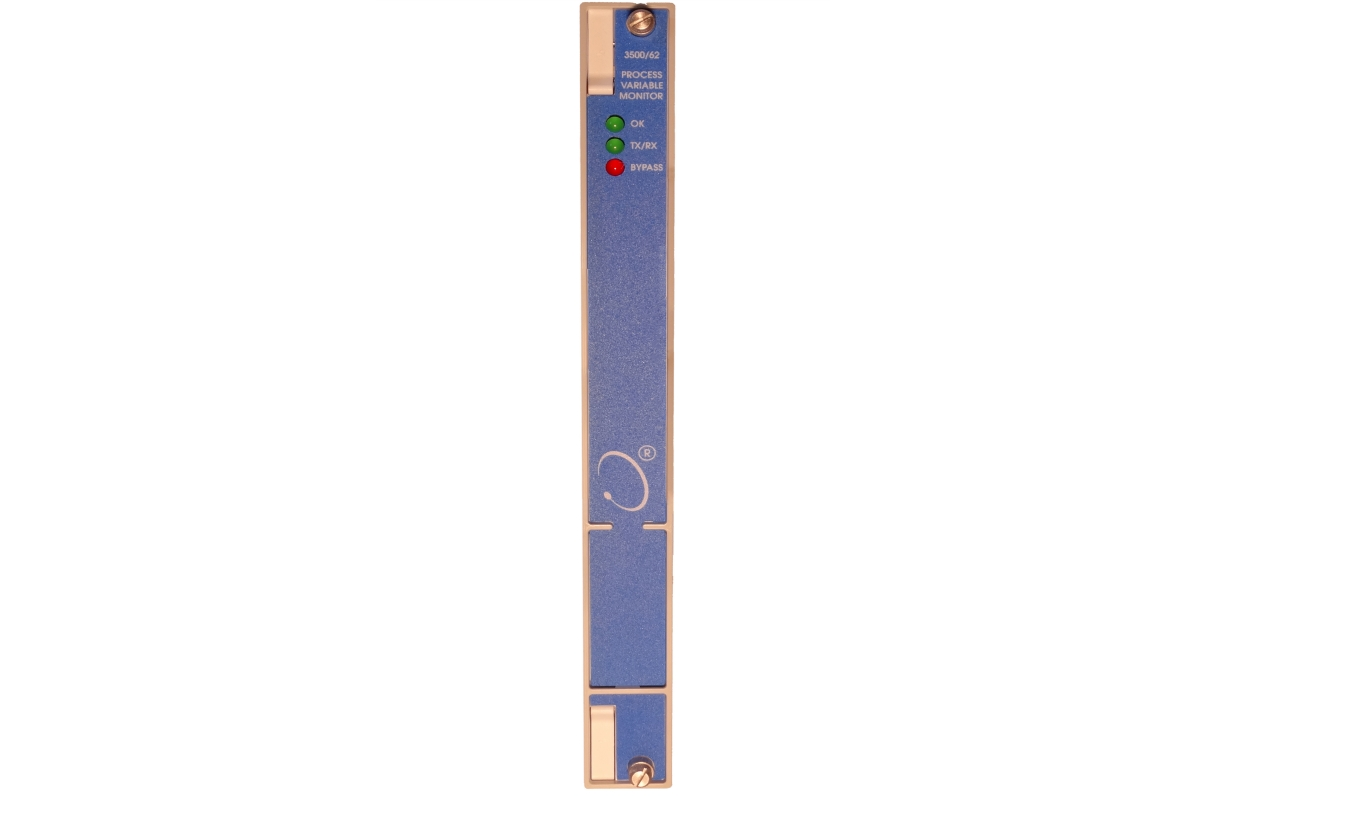

Bently Nevada 3500/62 Process Variable Monitor is a 6-channel monitor for processing critical machine parameters such as pressure, flow, temperature and level, which need to be continuously monitored.

It can receive + 4 to + 20 mA current input or any proportional voltage input between - 10 Vdc and + 10 Vdc, condition the signal, and compare the conditioned signal with the user-programmable alarm setpoint.

Features

• Multi-parameter monitoring: It can continuously monitor a variety of key machine parameters such as pressure, flow, temperature and level to fully understand the machine operation status.
• Multiple signal inputs: It can accept + 4 - +20 mA current input and - 10 Vdc - +10 Vdc proportional voltage input, with strong compatibility and can adapt to different types of sensor signals.
• Signal processing and comparison: The input signal is conditioned and continuously compared with the alarm threshold set by the user to detect abnormal conditions in time and trigger alarms to provide protection for the machine.
• Information provision: Provides key machine operation information to operators and maintenance personnel, helping them make decisions and perform maintenance work to ensure the normal operation of the machine.
• Configurability: Programmable through the 3500 Rack configuration software, choose current or voltage measurement to meet different monitoring needs.

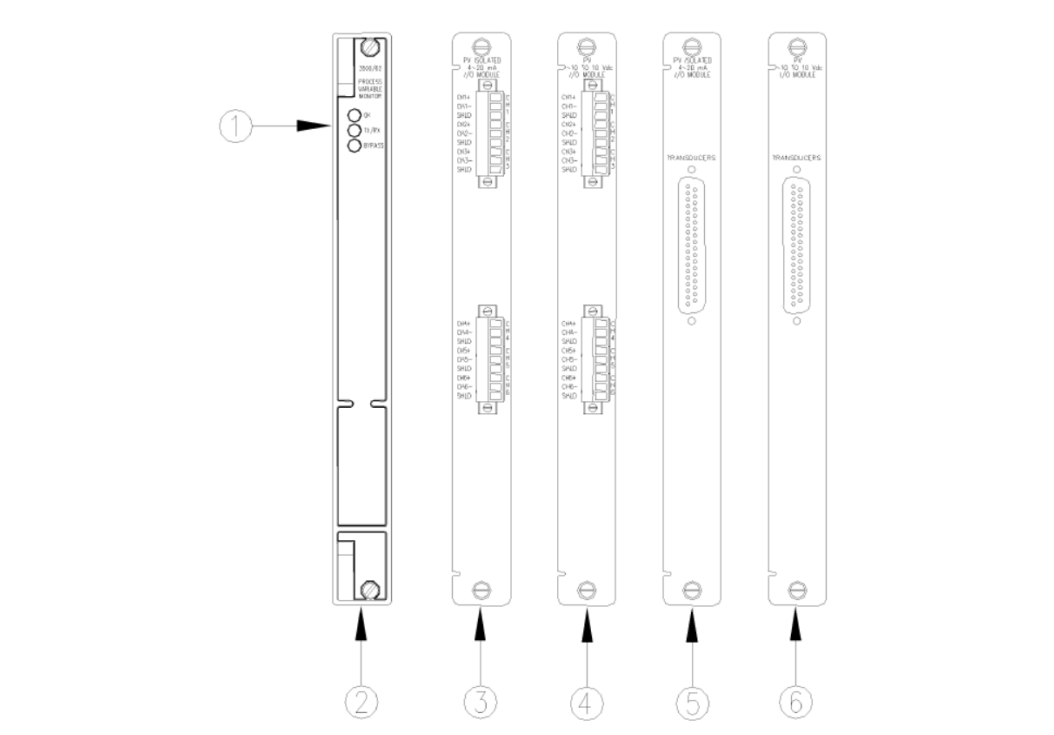

• Diverse I/O modules: Provide I/O modules for three signal input scenarios: +/-10 Volts DC, isolated 4 - 20 mA, and 4 - 20 mA with intrinsically safe Zener barriers, which enhances the flexibility and adaptability of the system.
• Redundant configuration: In the triple-mode redundant (TMR) configuration, three monitors need to be installed adjacent to each other, and two voting methods are used to ensure accurate operation to avoid machine protection failure due to single point failure.
