Bently Nevada 3500/40M-03-00 135489-04 Proximitor I/O Module with Internal Barriers and Internal Terminations
Description
| Manufacture | Bently Nevada |
| Model | 3500/40M-03-00 |

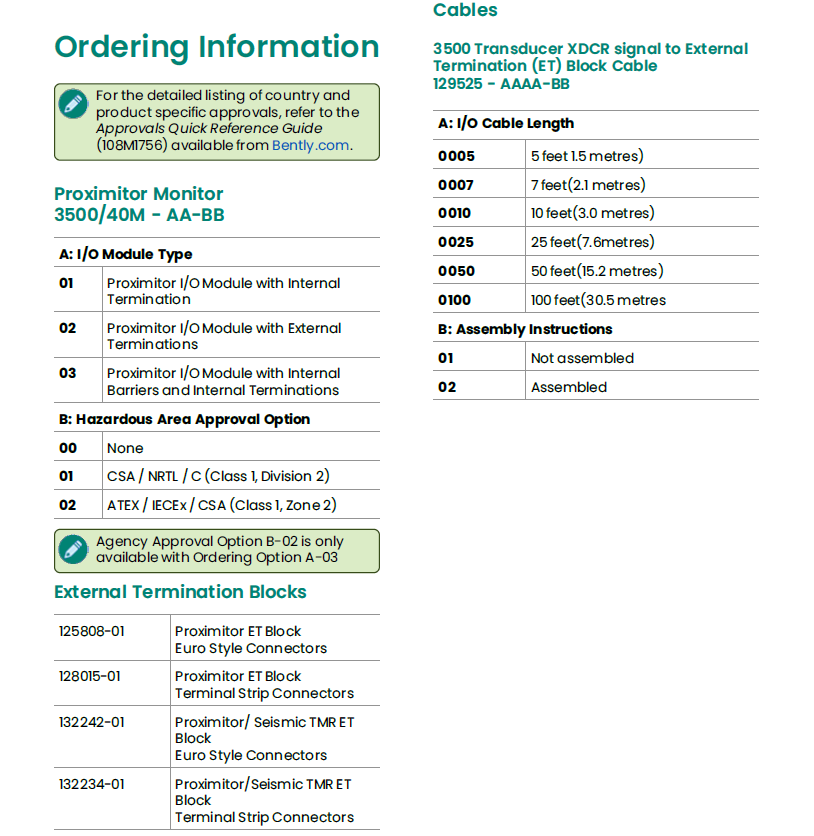

| Ordering information | 135489-04 |
| Catalog | 3500 |
| Description | Bently Nevada 3500/40M-03-00 135489-04 Proximitor I/O Module with Internal Barriers and Internal Terminations |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Description
The 3500/40M Proximitor Monitor is a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:
Radial vibration
Eccentricity
REBAM
Thrust position
Differential expansion
The primary purpose of the 3500/40M Proximitor Monitor is to provide the following:
Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
Essential machine information for both operations and maintenance personnel
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
You program the monitor channels in pairs. The monitor channels can perform up to 2 of these functions at a time. Channels 1 and 2 can perform one function, while channels 3 and 4 perform another (or the same) function.
