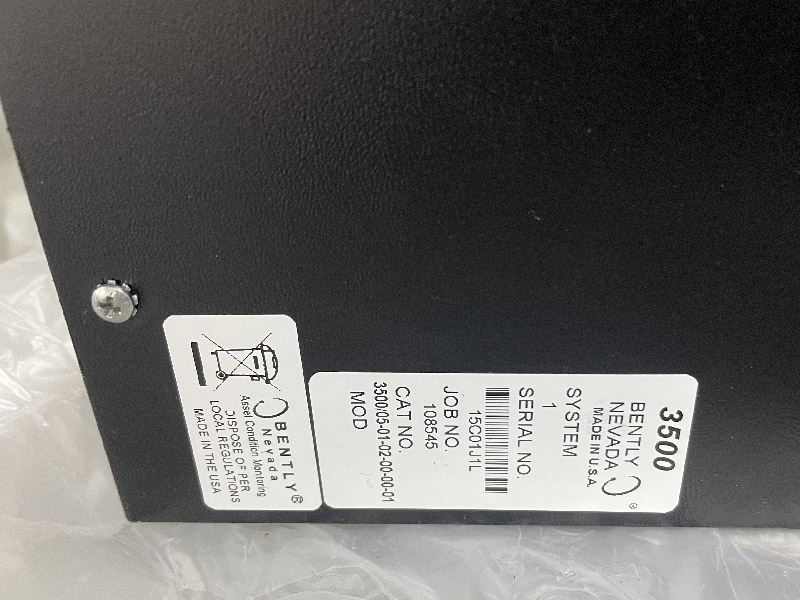

Bently Nevada 3500/05-01-02-00-01 is a 19-inch system rack, a product of Bently Nevada Corporation, with 14 module slots, a full-size rack that can be installed on a 19-inch EIA rack, with dimensions of 482.60 x 265.94 x 349.25 mm, mainly used to install all monitoring modules and power supplies of the 3500 series, facilitating communication between modules and power distribution.

Features
Various sizes: There are two sizes, full size and mini size specifications, the full size is a 19-inch EIA rack with 14 module slots; the mini size is a 12-inch rack with 7 module slots.

Panel installation: It can be installed in the rectangular cutout of the panel and fixed by the clips provided with the rack. The wiring connections and I/O modules can be accessed from the rear of the rack.
Rack Mount: The 3500 rack can be mounted on a 19-inch EIA rail, with the cabling connections and I/O modules still accessible from the rear of the rack.
Bulkhead Mount: The rack can be mounted on a wall or panel when the rear of the rack is not accessible, with the cabling connections and I/O modules accessible from the front of the rack, but this mounting format is not available on the 3500/05 Mini Rack.
