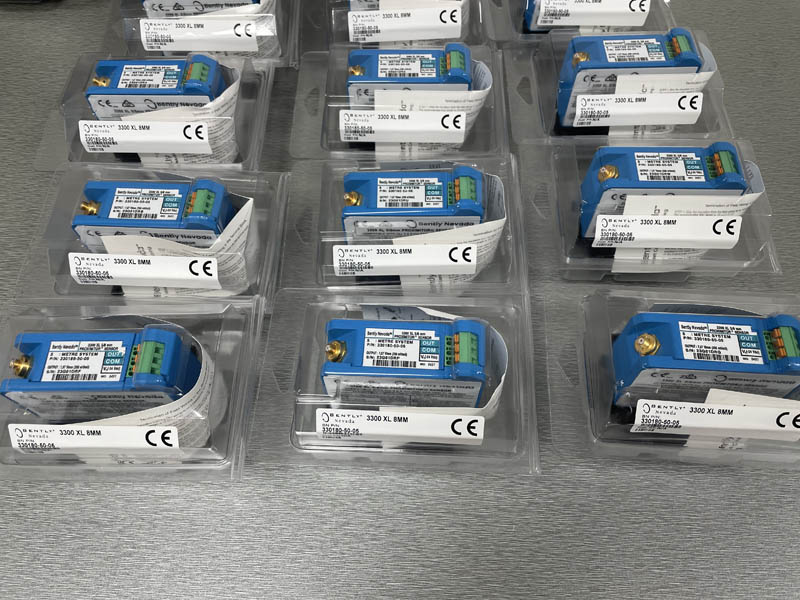

Bently Nevada's 3300 XL Proximitor sensor, model 330180-50-05, is part of the 3300 XL 8mm Proximity Sensor System. It is a 5.0-meter (16.4-foot) panel-mount sensor that differs from the 330180-51-05 in mounting options.

The sensor is part of a system that provides an output voltage proportional to the distance between the probe tip and the conductive surface being measured.

It can measure static and dynamic values, and is primarily used for vibration and position measurement in fluid film bearing machines. Improvements and related advantages over previous designs are also described.

Features
System association: It is part of the 3300 XL 8mm Proximity Sensor System and is combined with the 3300 XL 8mm Probe and 3300 XL Extension Cable to form a system.
Basic specifications: The system is 5.0 meters (16.4 feet) long and is panel-mounted.
Features: Outputs a voltage proportional to the distance between the probe tip and the conductive surface being measured, measures static (position) and dynamic (vibration) values, primarily used for vibration and position measurements on fluid film bearing machines, as well as Keyphasor reference and velocity measurements.
Design improvements: Physical packaging allows for high-density DIN rail mounting, as well as a traditional panel mount configuration, with the same 4-hole mounting "footprint" as the older model.
