Features

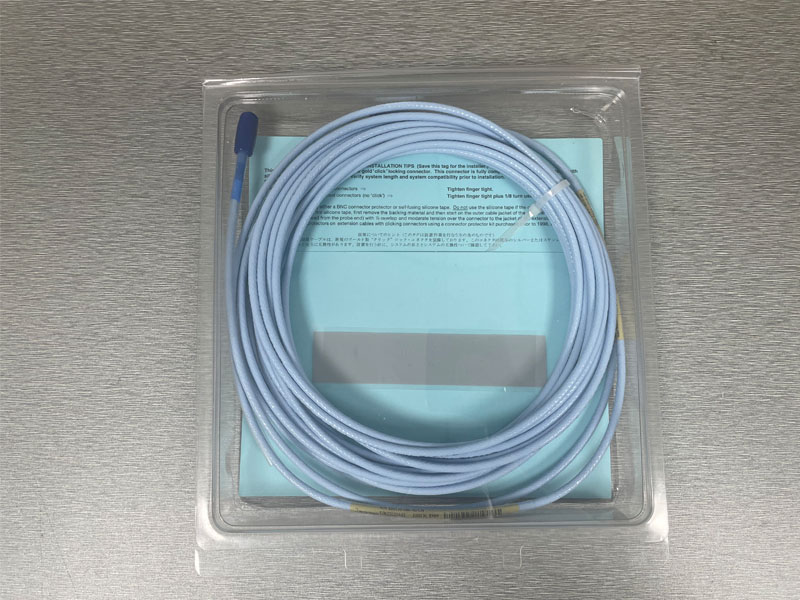

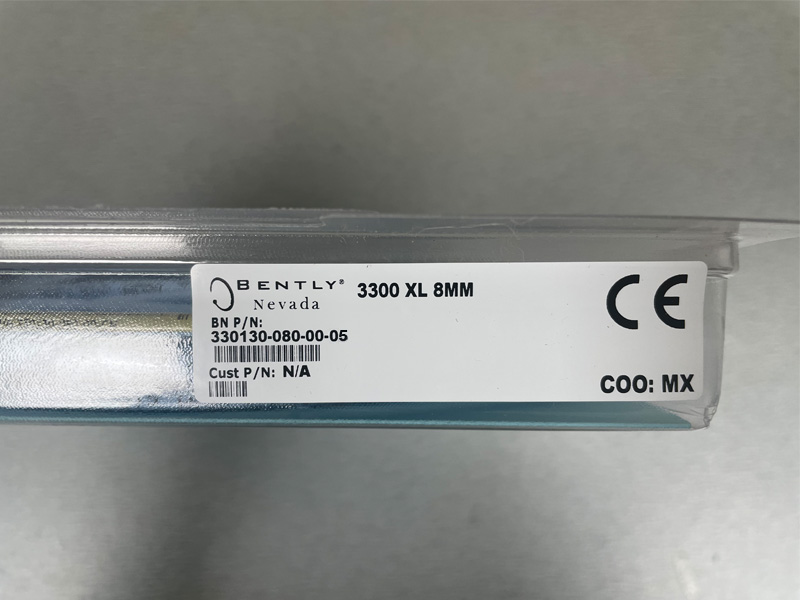

Basic Information: Model 330130-080-00-05, part of the Bently Nevada 3300 XL standard extension cable series, is available in 8.0 m length standard cables.
Design Improvements: Patented TipLoc molding method for a more secure connection between the probe tip and the probe body; the probe cable features a patented CableLoc design with a 330 N (75 lbf) pull strength for a more secure connection between the probe cable and the probe tip.
Optional Features: The 3300 XL 8 mm probe and extension cable can be ordered with the FluidLoc cable option, which prevents oil and other fluids from leaking out of the machine through the interior of the cable.
System Composition: The Bently Nevada 3300 XL 8 mm Proximity Sensor System consists of a 3300 XL 8 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor sensor.
Accessory Use: Each 3300 XL extension cable includes silicone tape that can be used in place of the connector protector, however it is not recommended for use in applications where the probe to extension cable connection will be exposed to turbine oil.
