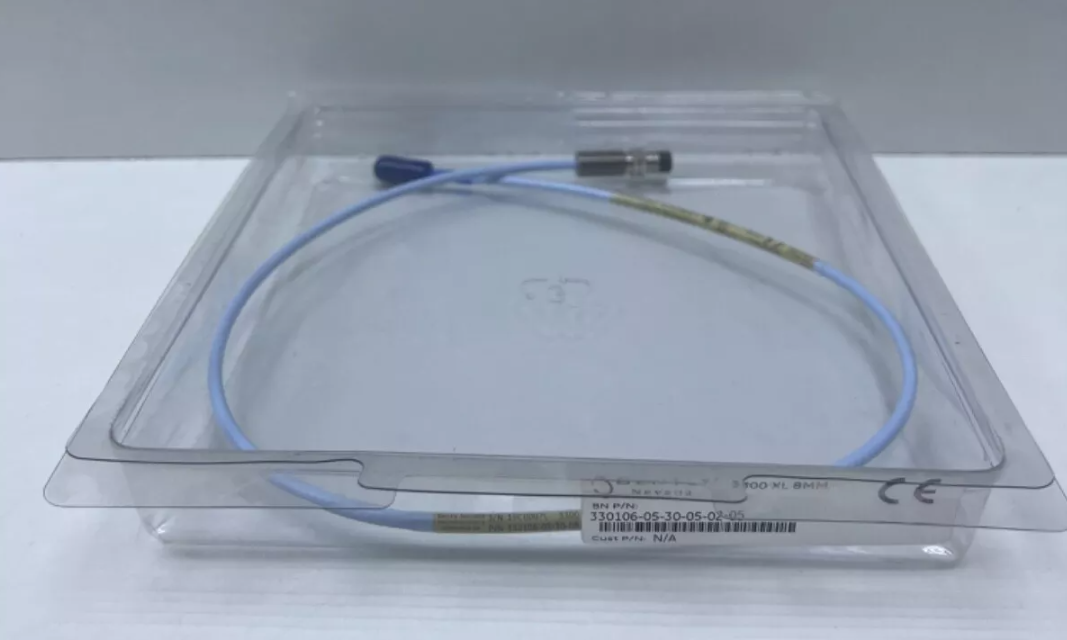

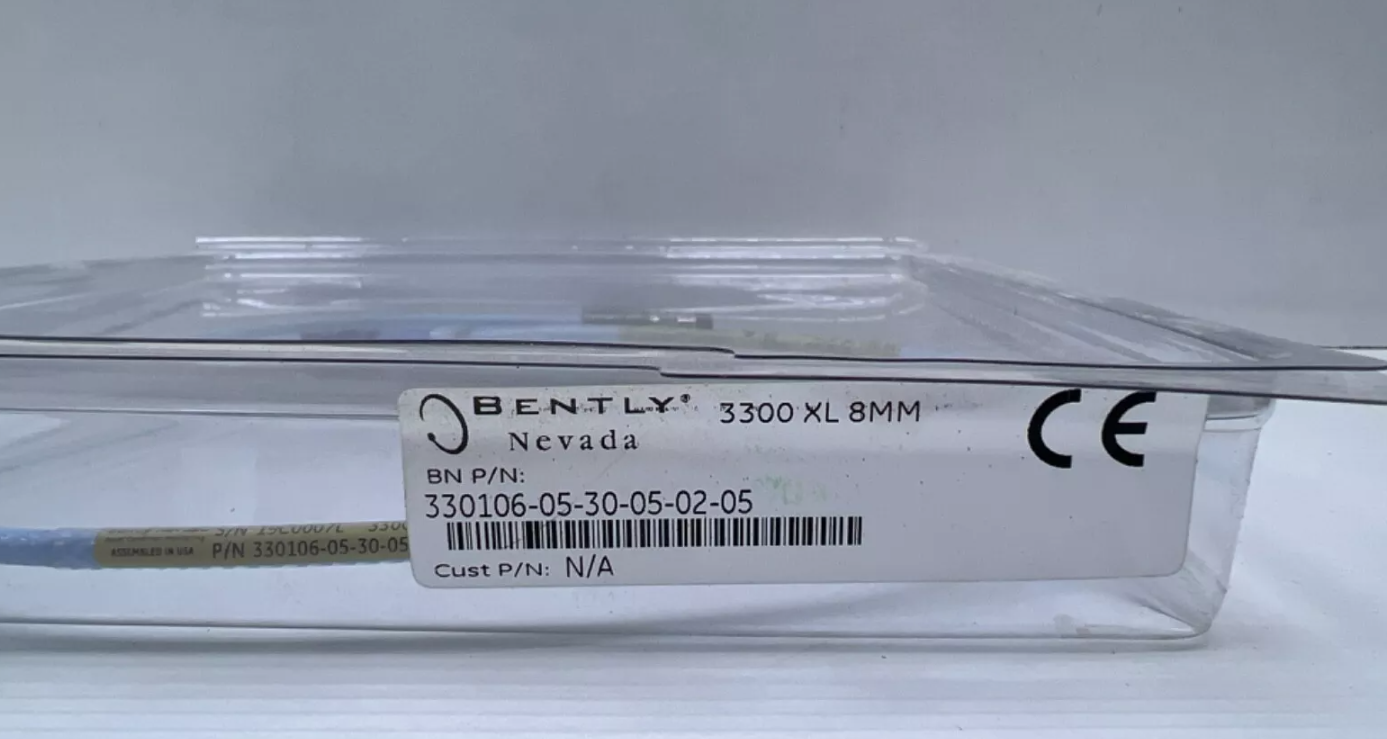

Bently Nevada 330106-05-30-05-02-05 is a 3300 XL 8 mm Reverse Mount Probe designed for vibration and displacement monitoring in industrial machinery. Below is a detailed breakdown of its specifications, features, and applications:

Part Number Breakdown:
Code Description
330106 Base Part Number: 3300 XL 8 mm Reverse Mount Probe
05 Total Length Option: 0.5 metre (1.6 feet)
30 Case Length Option: 3.0 inches
05 Unthreaded Length Option: 0.5 inches
02 Connector Option: Miniature ClickLoc™ coaxial connector
05 Agency Approval Option: Multiple Approvals (e.g., CSA, ATEX, IECEx)
Key Specifications:
Probe Tip Material:

Polyphenylene Sulfide (PPS): A durable, high-temperature-resistant material suitable for harsh environments.

Probe Case Material:

AISI 303 or 304 Stainless Steel (SST): Provides excellent corrosion resistance and durability.

Probe Pressure:

Sealing Mechanism: The probe is designed to seal differential pressure between the probe tip and case using a Viton® O-ring.

Note: Probes are not pressure-tested prior to shipment. For pressure testing or custom requirements, contact Bently Nevada's custom design department.

Total Length:

0.5 metre (1.6 feet): The total length of the probe, including the cable.

Case Length:

3.0 inches: The length of the threaded portion (case) of the probe.

Unthreaded Length:

0.5 inches: The length of the unthreaded portion of the probe.

Connector Type:

Miniature ClickLoc™ Coaxial Connector: Ensures secure and reliable connections.

Agency Approvals:

Multiple Approvals (05 option): Complies with international standards, including hazardous location certifications (e.g., CSA, ATEX, IECEx).

Shipping Weight:

2 kg: The weight of the probe for shipping purposes.

Key Features:
Reverse Mount Design: Suitable for applications where the probe needs to be mounted in a reverse configuration.

Durable Materials: PPS probe tip and stainless steel case ensure longevity in harsh environments.

Pressure Sealing: Viton® O-ring provides a reliable seal for differential pressure applications.

Compact Size: 0.5-metre total length and 3.0-inch case length make it ideal for tight installations.

Secure Connector: Miniature ClickLoc™ coaxial connector for quick and reliable connections.

Multiple Certifications: Complies with international standards for hazardous locations.
