Bently Nevada 3300/03-02-00 System Monitor
Description
| Manufacture | Bently Nevada |
| Model | 3300/03-02-00 |

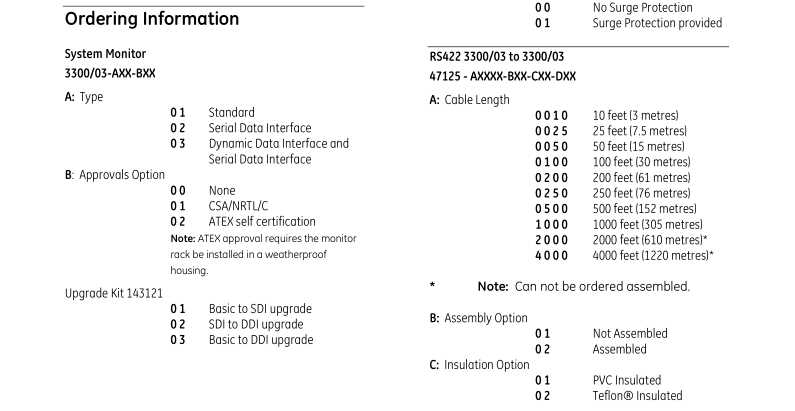

| Ordering information | 3300/03-02-00 |
| Catalog | 3300 |
| Description | Bently Nevada 3300/03-02-00 System Monitor |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
Description
The System Monitor performs four important tasks in a 3300 monitor rack, providing:
Functions common to all monitors in the rack, such as:
- Alarm setpoint adjustment
- Keyphasor power, termination, conditioning, and distribution
- Alarm acknowledgement
Connection of all installed monitors to an external communications processor (sold separately) via STATIC and DYNAMIC data ports.
Optional Serial Data Interface (SDI) for communication of transducer and monitor data to process computers, digital/distributed control systems, programmable controllers, and other control and automation systems.
Optional Dynamic Data Interface (DDI) for communication of transducer and monitor data to compatible Bently Nevada machinery management software. Depending on the type of data required, this option may eliminate the need for an external communications processor.
Warning
A transducer field wiring failure, monitor failure, or loss of primary power can cause loss of machinery protection. This could result in property damage and/or bodily injury. Therefore, we strongly recommend connection of an external (operator control panel mounted) annunciator to the OK Relay terminals.
