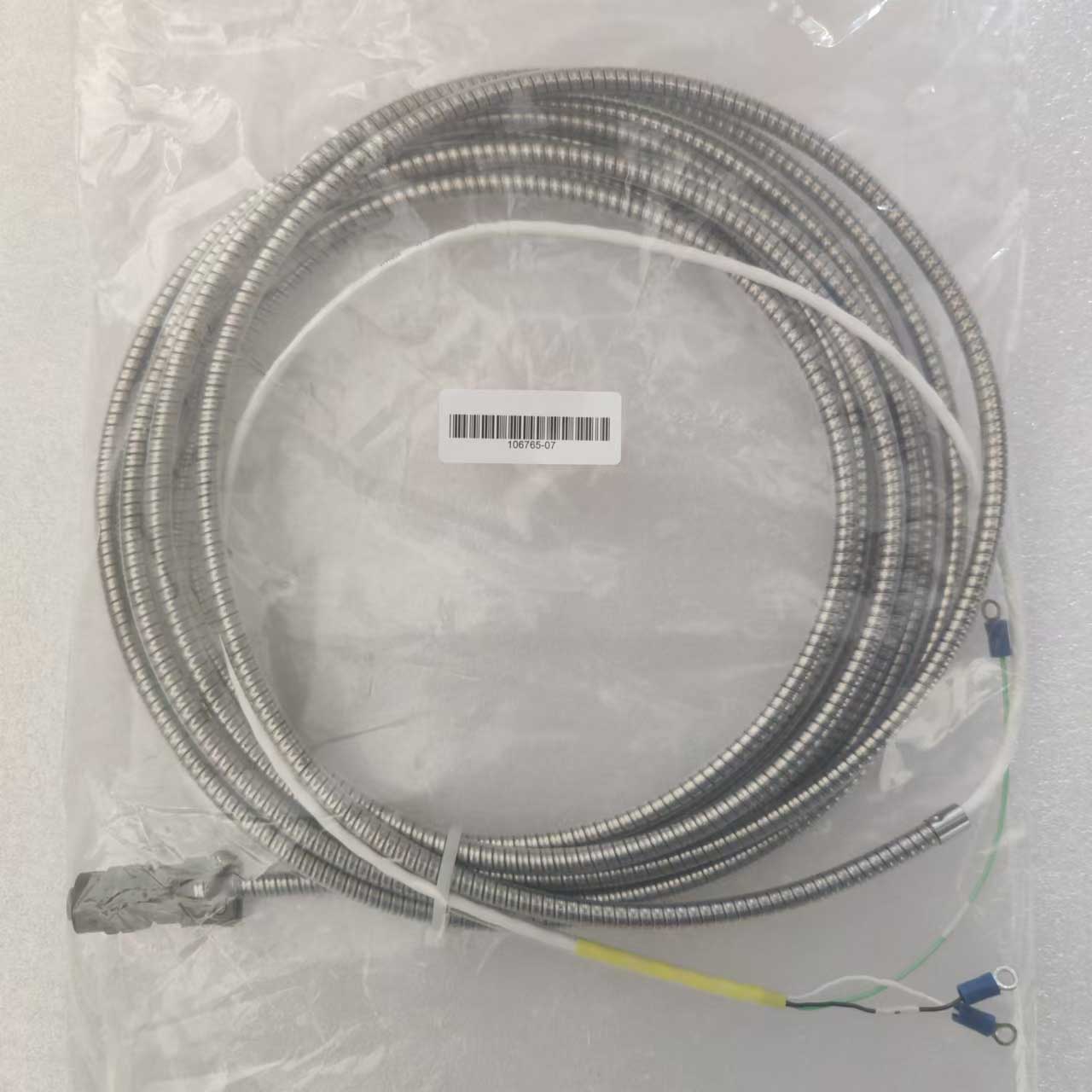

Bently Nevada 106765-07 is an Armored Interconnect Cable designed for use with the 330525 Velomitor XA Piezo-Velocity Sensor. Below is a detailed breakdown of its specifications, features, and applications:

Part Number Breakdown:
Code Description
106765 Base Part Number: Interconnect Cable (Armored)
07 Cable Length: 7 metres
Key Specifications:
Cable Length:

7 metres: Provides sufficient length for flexible installation in various setups.

Armored Design:

The cable is armored for enhanced durability and protection in harsh industrial environments.

Compatibility:

Used with the 330525 Velomitor XA Piezo-Velocity Sensor for vibration monitoring.

Terminal Housing:

Provides a local connection point for terminating the Velomitor XA Sensor cable to the bulk cable.

Each Terminal Housing can accommodate up to 2 Velomitor XA Sensor Cables.

Ordering Information:

Ordering Number: 106765-AA

A: Length in metres (e.g., 07 for 7 metres).

Minimum Length: 1 metre (3.3 feet).

Maximum Length: 25 metres (82 feet).

Ordering Increments: 3 metres.

Key Features:
Armored Construction: Provides robust protection against physical damage, making it suitable for harsh environments.

Compatibility: Specifically designed for use with the 330525 Velomitor XA Piezo-Velocity Sensor.

Terminal Housing: Simplifies the connection of sensor cables to field wiring, supporting up to 2 sensors per housing.

Flexible Length Options: Available in lengths from 1 to 25 metres, ordered in 3-metre increments.
