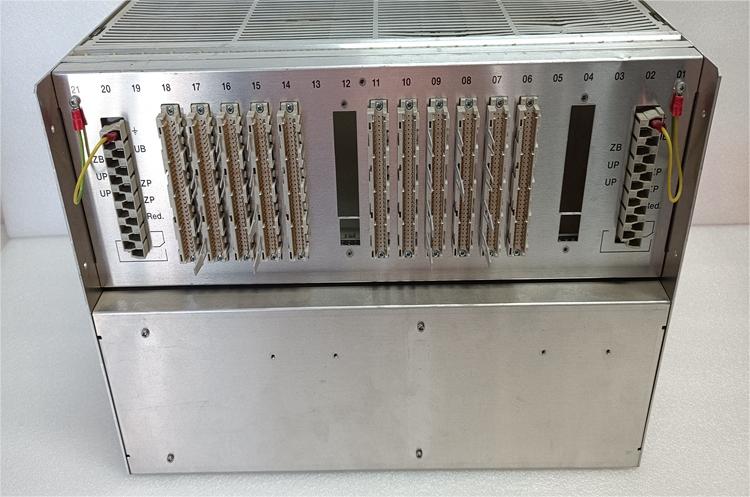

ABB REG216 HESG324513R1 Digital Generator Protection Rack
Description
| Manufacture | ABB |
| Model | REG216 |
| Ordering information | HESG324513R1 |
| Catalog | Procontrol |
| Description | ABB REG216 HESG324513R1 Digital Generator Protection Rack |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The REG216/REG216 Compact system is intended for the protection of generators and block transformers.
The modular hardware and software design allows an extremely flexible installation.
Simplicity of adaption to the size of the primary system and the desired protection schemes are achieved through the combination of a software library and hardware modules.
Economic solutions can thus be achieved in the full range of applications for which it is intended.
The REG216 software system offers a library of protective functions. Functions suitable for generator and transformer protection are listed in the table below.
Different degrees of redundancy can be selected. Availability and reliability of the protection can be chosen to suit the application by duplicating e.g. auxiliary supply units of the whole system.
Standard interfaces make REG216/REG216 Compact compatible with different process control systems.
Data exchange with higher process control levels are possible, e.g. oneway reporting of digital states and events, measured values and protection parameters.
