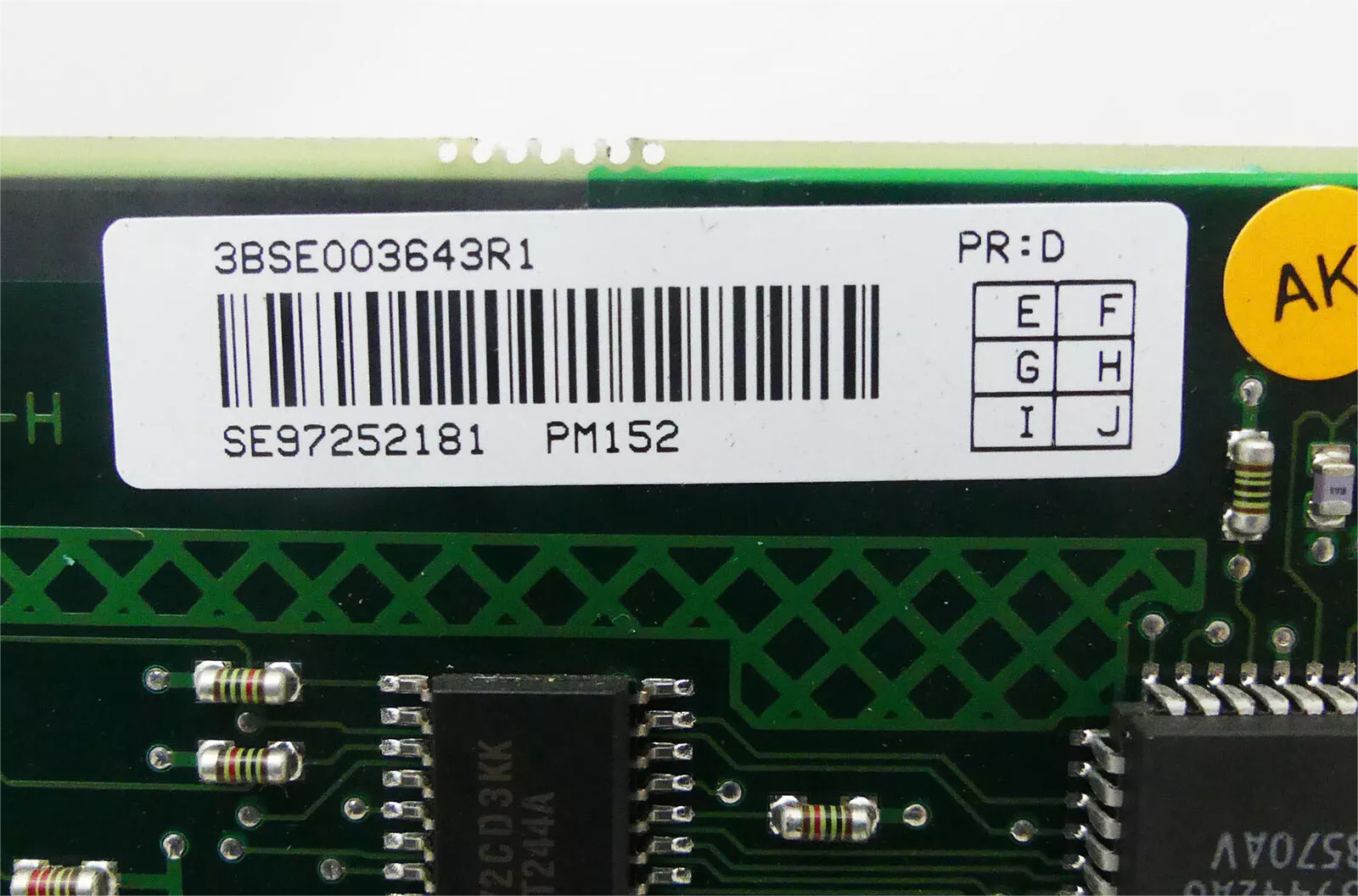

ABB PM152 3BSE003643R1 Analog Output Module
Description
| Manufacture | ABB |
| Model | PM152 |
| Ordering information | 3BSE003643R1 |
| Catalog | Advant OCS |
| Description | ABB PM152 3BSE003643R1 Analog Output Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The ABB PM152 3BSE003643R1 is an within the ABB AC800F Freelance field controller system. It acts as the bridge between the digital AC800F system and analog actuators or devices requiring control signals.
Function:
Converts digital control signals from the AC800F system into analog output voltages or currents for driving actuators or other field devices.
Output channels: Typically features 8 or 16 isolated output channels.
Output types: Can provide various analog signal types, including voltage (single-ended or differential) and current.
Resolution: Offers high resolution for precise control, typically 12 or 16 bits.
Accuracy: Maintains high accuracy with minimal signal distortion for reliable control performance.
Communication: Communicates with the AC800F base unit via the S800 bus for efficient data exchange.
Features:
Scalable configuration: Similar to the PM151, you can connect multiple PM152 modules in an AC800F system to expand your analog output capacity.
Diagnostic tools: Built-in features enable monitoring module status and troubleshooting any signal or communication issues.
Compact design: Shares the same compact and modular form factor as the PM151 for convenient integration within AC800F racks.
