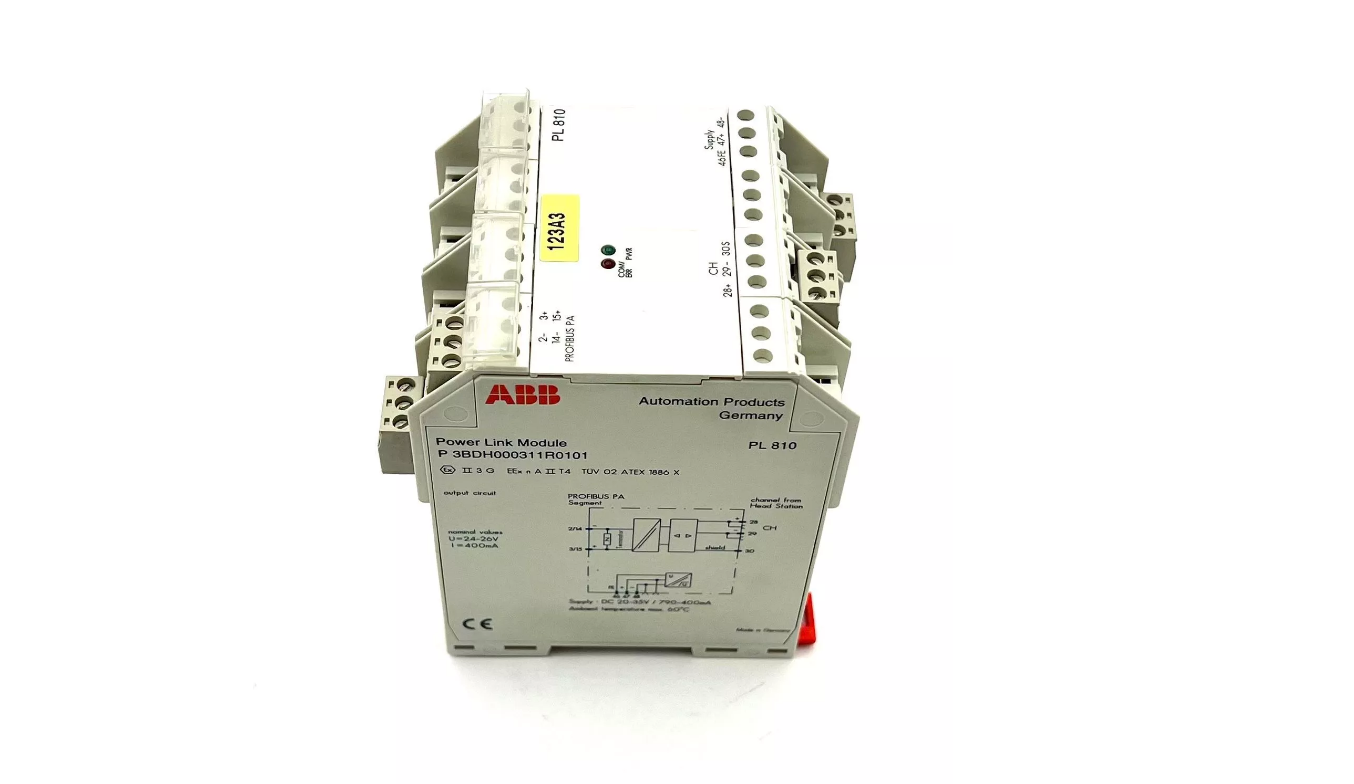

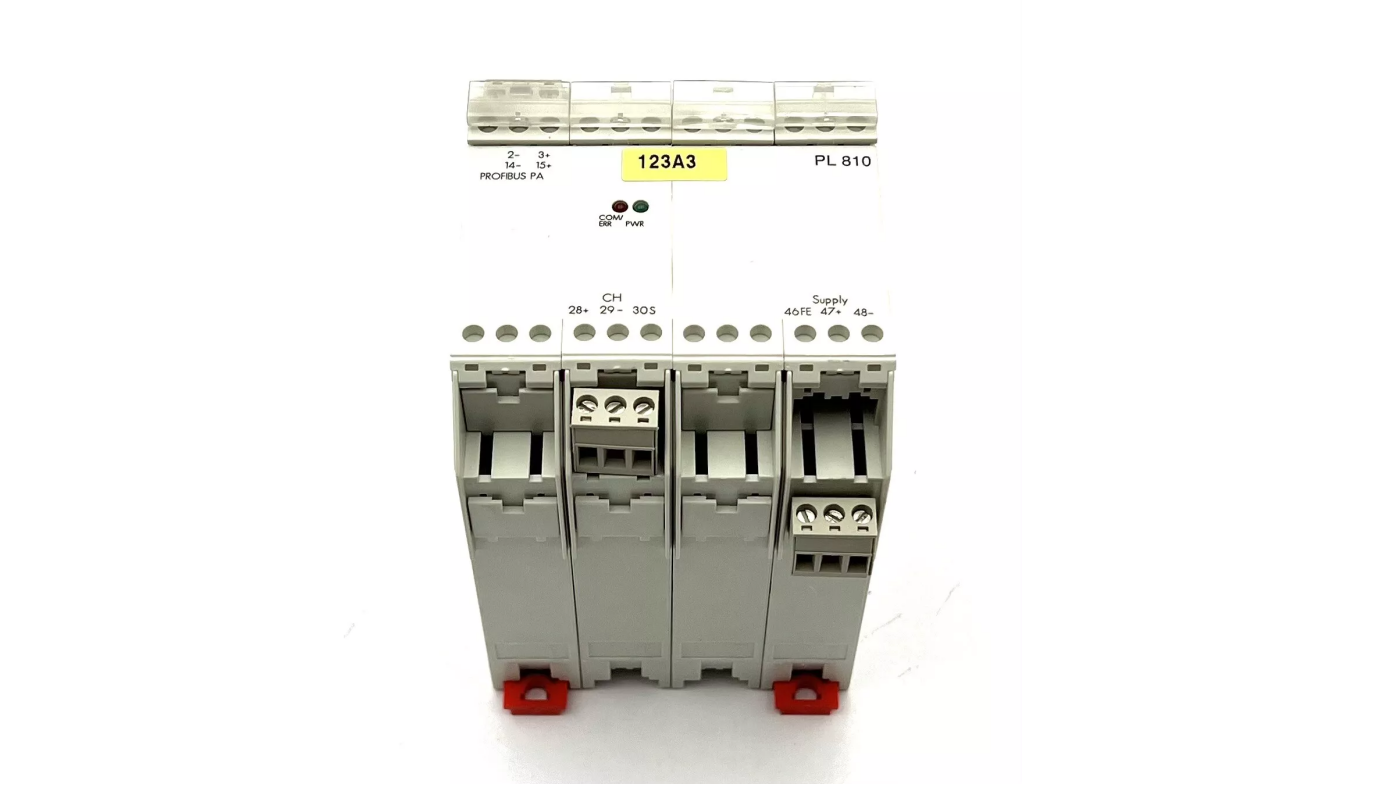

ABB PL810 3BDH000311R0101 New Power Module Card

Features and Applications:

ABB power module uses advanced integrated circuit technology to integrate power devices and logic control circuits into a highly integrated, fully sealed integrated block with power function.

The power module has the advantages of easy use and reliable performance, and it represents the development direction of power technology.

Since the switching power supply has the advantages of high working efficiency and small size, it is suitable for integration; while the linear regulated power supply has low efficiency, generally around 50%, so it is difficult to achieve high-power (above 100W) integration.

The power module introduced by Jimi Technology refers to the switching power module, with the focus on DCIDC converters. The current switching power module can reach hundreds of watts or even thousands.

The power module products mainly include DC/DC converter modules, power factor correction blocks, AC input modules, etc. Their main features are:

ABB power modules have high operating frequencies, generally 300KHZ~1MHZ.

ABB power modules are small in size, ultra-thin, generally less than 20mm in thickness, light in weight, generally less than 200g·ABB power modules have high power density, generally 5~10W/cubic centimeter.
