ABB IMDSI02 Digital Slave Input Module
Description
| Manufacture | ABB |
| Model | IMDSI02 |
| Ordering information | IMDSI02 |
| Catalog | Bailey INFI 90 |
| Description | ABB IMDSI02 Digital Slave Input Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

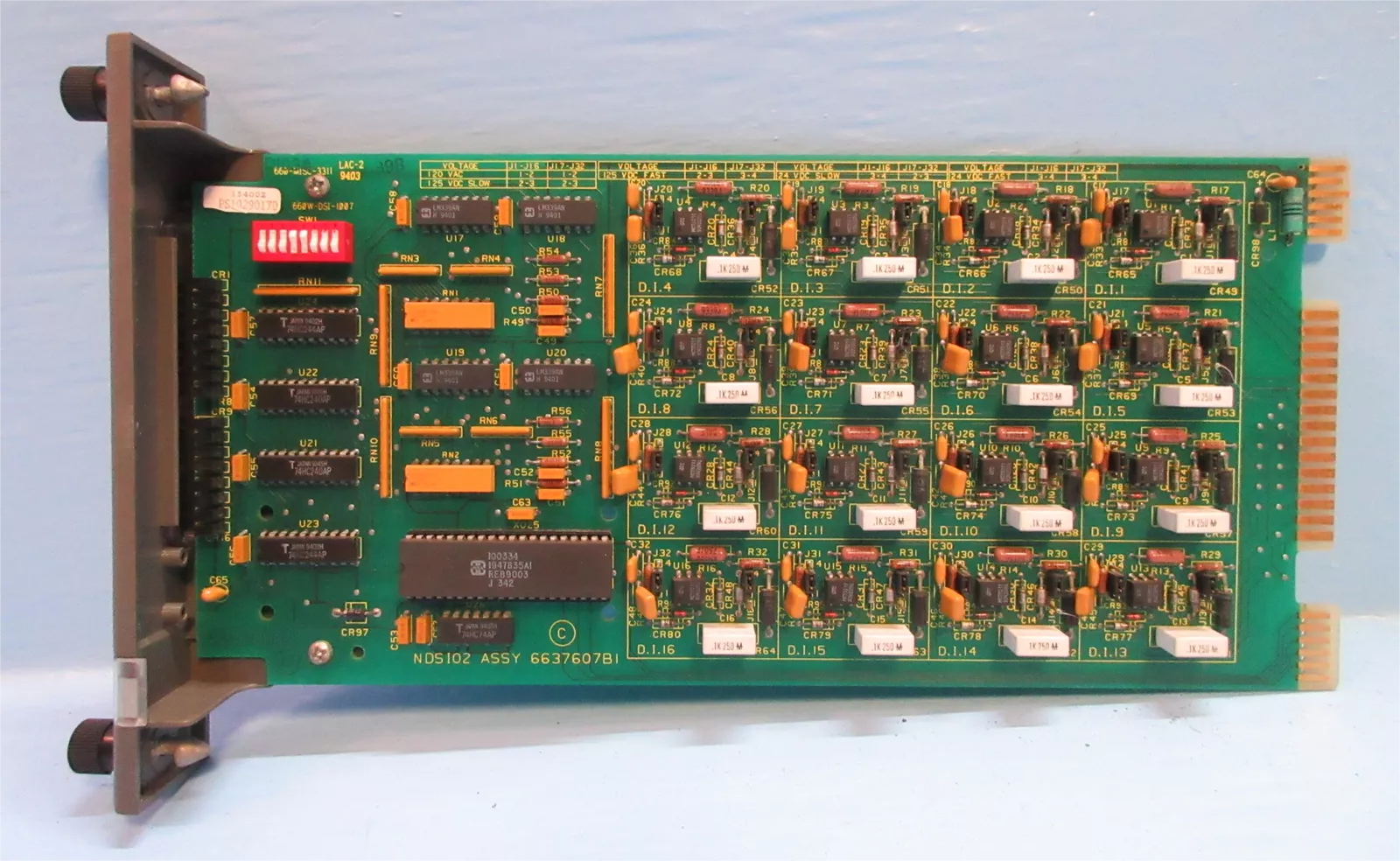

The Digital Slave Input module (IMDSI02) is an interface used to bring sixteen separate process field signals into the Infi 90 Process Management System.
These digital inputs are used by master modules to monitor and control a process.
The Digital Slave Input module (IMDSI02) brings sixteen separate digital signals into the Infi 90 system for processing and monitoring. It interfaces process field inputs with the Infi 90 Process Management System.
A contact closure, switch or solenoid is an example of a device that supplies a digital signal.

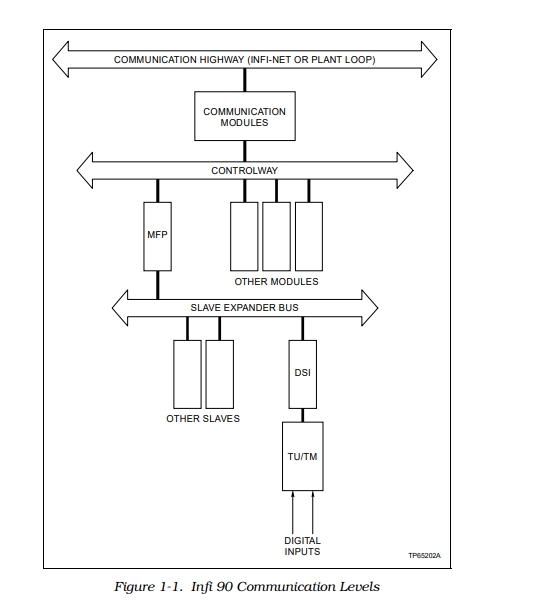

Master modules provide the control functions; slave modules provide the I/O.
The modular design of the DSI module, as with all Infi 90 modules, allows for flexibility when you are creating a process management strategy.
It brings sixteen separate digital signals (24 VDC, 125 VDC and 120 VAC) into the system.
Individual voltage and response time jumpers on the module configure each of the inputs. Selectable response times (fast or slow) for DC inputs allow the Infi 90 system to compensate for process field device debounce time.
The front panel LED status indicators provide a visual indication of the input states to aid in system test and diagnosis. A DSI module can be removed or installed without powering the system down.
