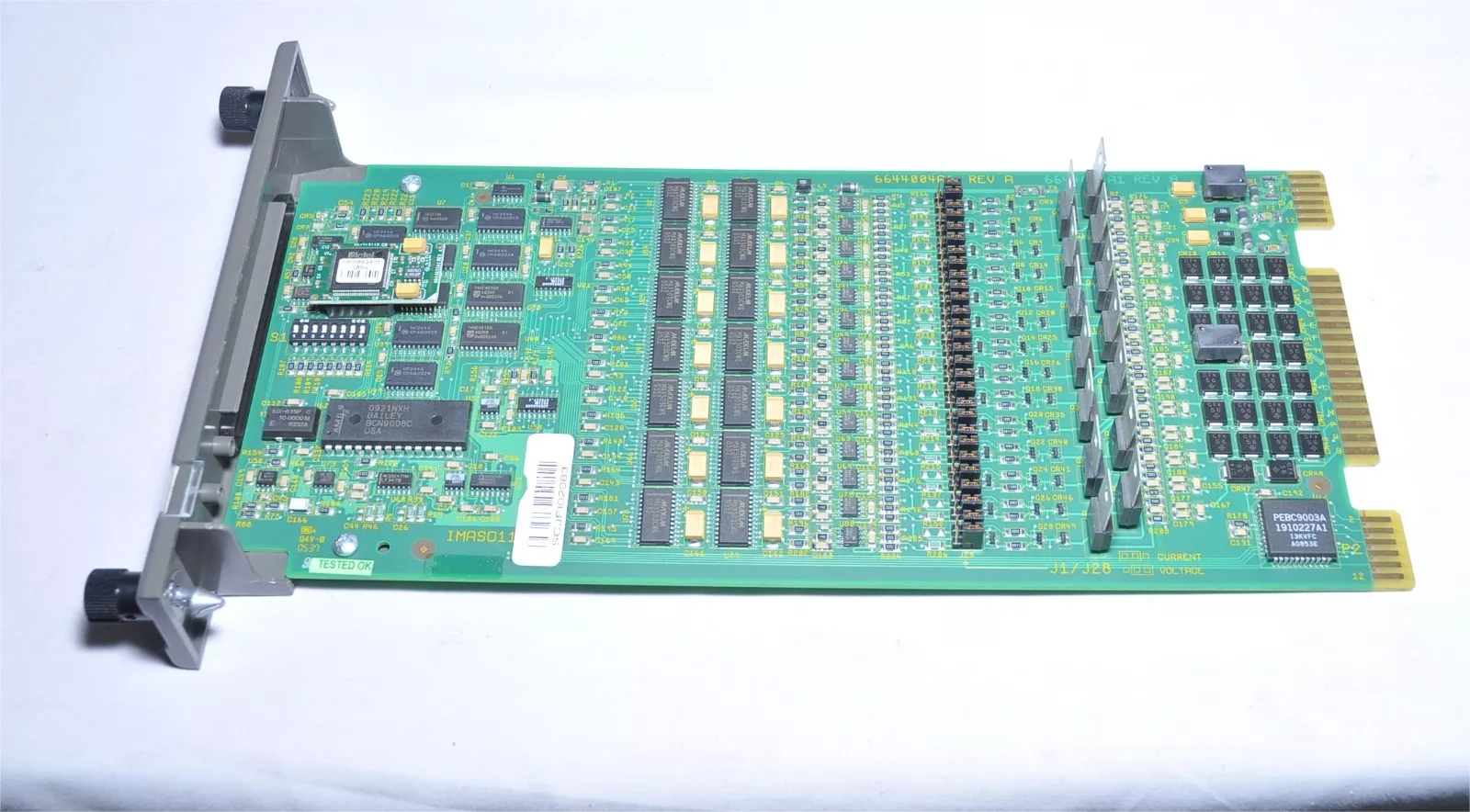

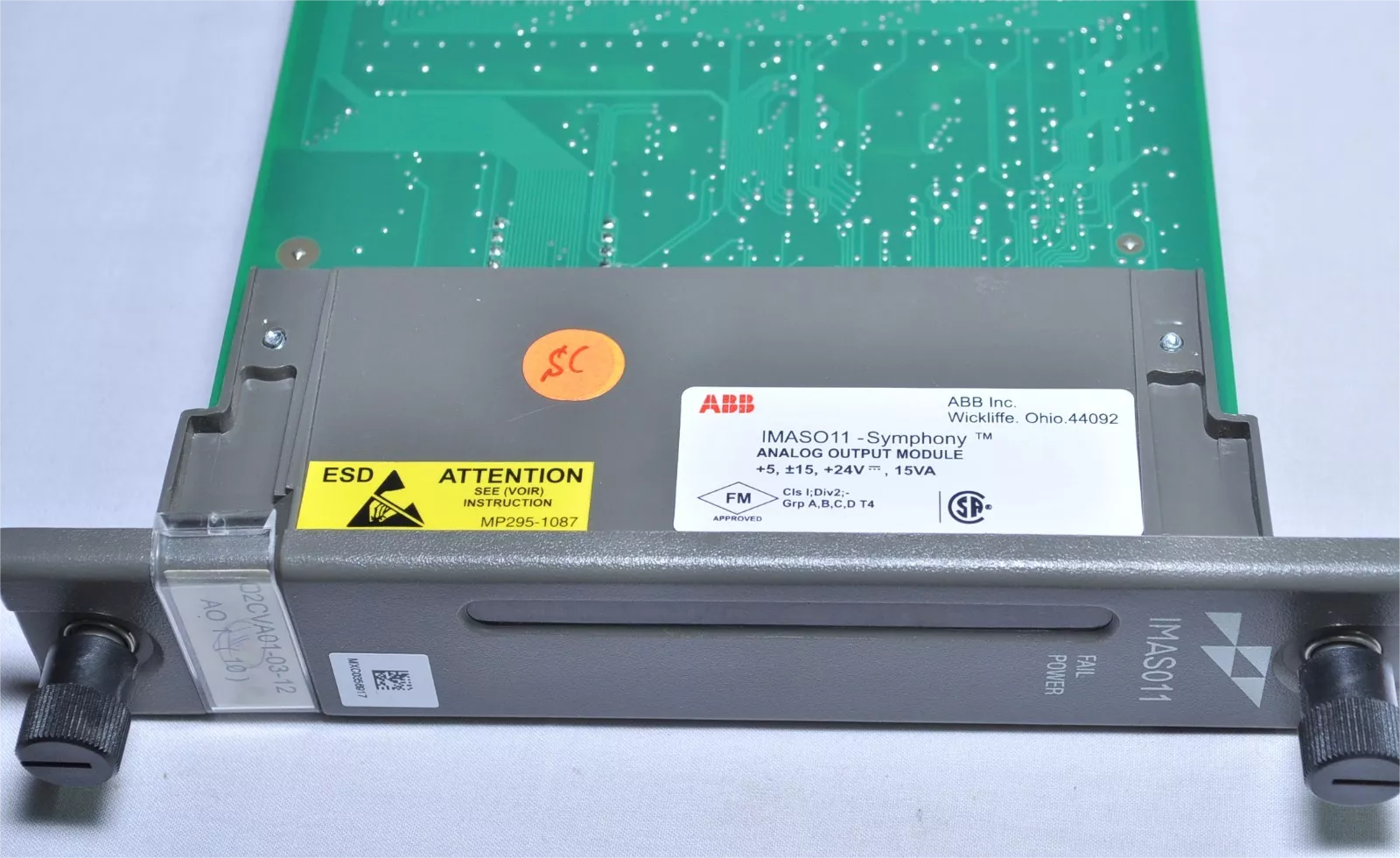

ABB IMASO11 Analog Output Module
Description
| Manufacture | ABB |
| Model | IMASO11 |
| Ordering information | IMASO11 |
| Catalog | Bailey INFI 90 |
| Description | ABB IMASO11 Analog Output Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The IMASO11 Analog Output module processes up to 14 analog control outputs for a Harmony controller.
The controller utilizes function codes 149 (analog output group) to configure and access the module output channels.
Each channel can be individually programmed for the following output types:
■ 4 to 20 milliampere.
■ 1 to 5 VDC. Each output reads back the signal to the field to insure accurate operation and eliminate the need to calibrate outputs.
The IMASO11 Analog Output (ASO) module outputs fourteen analog signals from the INFI 90® OPEN Strategic Process Management System to process field devices.
Control modules (i.e.,MFP, multifunction processor or MFC,multifunction controller)use these outputs to control a process.
This instruction explains the analog output module features,specifications and operation. It details the procedures to set up and install an analog output module.
It explains troubleshooting,maintenance and module replacement procedures.
