ABB IMASO01 Analog Slave Output Module
Description
| Manufacture | ABB |
| Model | IMASO01 |
| Ordering information | IMASO01 |
| Catalog | Bailey INFI 90 |
| Description | ABB IMASO01 Analog Slave Output Module |
| Origin | Germany (DE) Spain (ES) United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The Analog Slave Output module (IMASO01) outputs fourteen analog signals from the INFI 90 Process Management System to process field devices. Master modules use these outputs to control a process.
This instruction explains the slave module features, specifications and operation. It details the procedures to follow to set up and install an Analog Slave Output (ASO) module.
It explains troubleshooting, maintenance and module replacement procedures. The system engineer or technician using the ASO should read and understand this instruction before installing and operating the slave module.
In addition, a complete understanding of the INFI 90 system is beneficial to the user. This instruction includes updated information that covers changes to the specification of the ASO module.
The Analog Slave Output module (IMASO01) outputs fourteen separate analog signals that the INFI 90 system uses to control a process.
It is an interface between the process and the INFI 90 Process Management System. Master modules perform the control functions; slave modules provide the I/O.
This manual explains the purpose, operation and maintenance of the slave module. It addresses handling precautions and installation procedures.

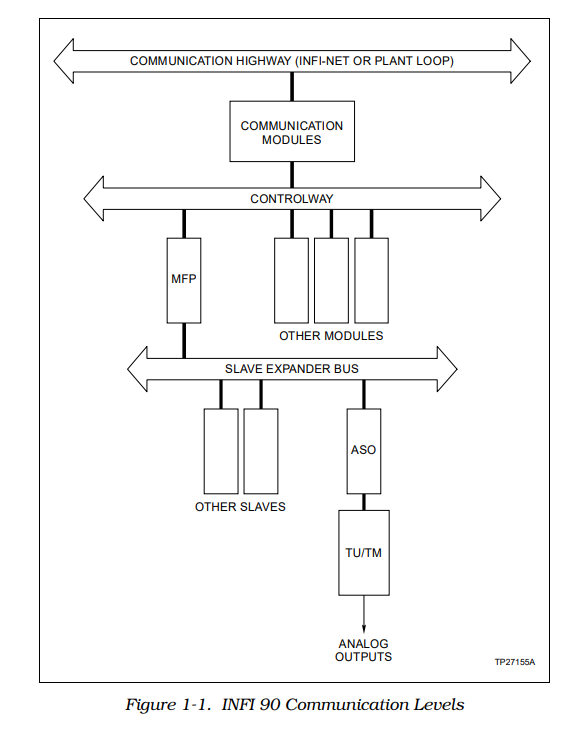

Figure 1-1 illustrates the INFI 90 communication levels and the position of the ASO module within these levels.
