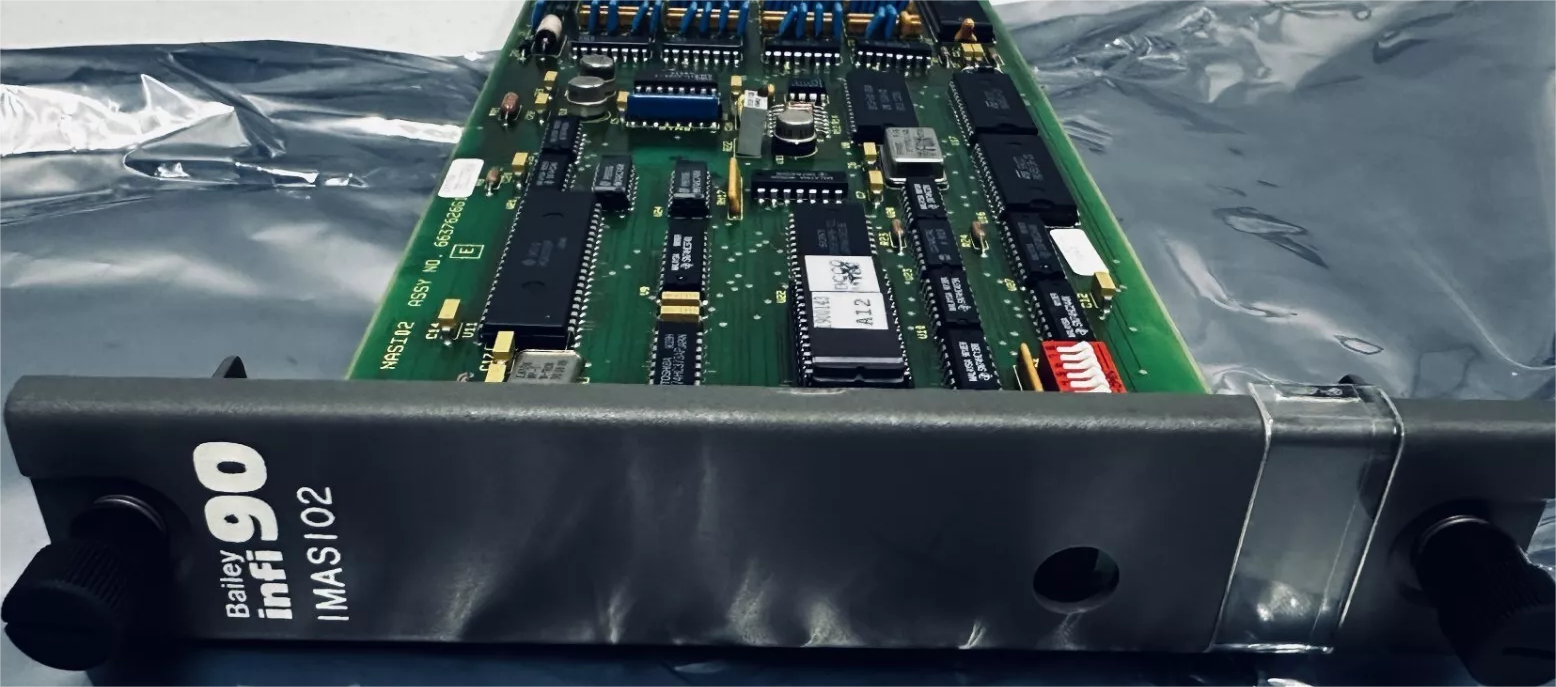

ABB IMASI02 Analog Input Module
Description
| Manufacture | ABB |
| Model | IMASI02 |
| Ordering information | IMASI02 |
| Catalog | Bailey INFI 90 |
| Description | ABB IMASI02 Analog Input Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The Analog Slave Input Module (IMASI02) inputs 15 channels of analog signals to the Multi-Function Processor (IMMFP01/ 02) or Network 90 Multi-Function Controllers.

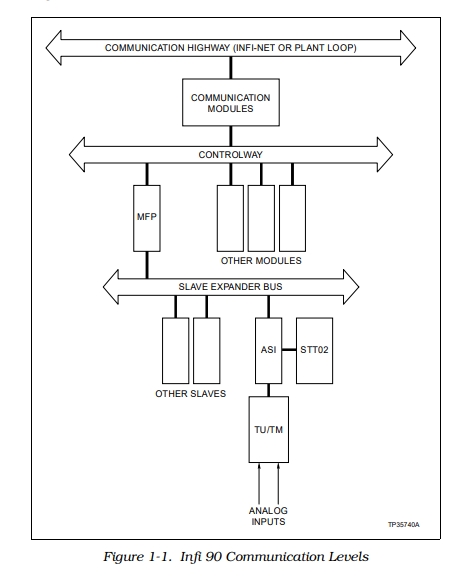

It is a dedicated slave module that connects field equipment and Bailey smart transmitters to the master modules in the Infi 90/Network 90 System.
The slave also provides a signal path from an Infi 90 operator interface such as Operator Interface Station (OIS), or Configuration and Tuning Terminal (CTT) to the Bailey Controls smart transmitters.
The OIS or CTT connects to the Bailey Controls smart transmitters through the MFP and the ASI.The ASI is a single printed circuit board that uses one slot in aModule Mounting Unit (MMU).
Two captive screws on the module faceplate secure it to the MMU.
The slave module has three card edge connectors for external signals and power: P1, P2and P3.
P1 connects to common and supply voltages. P2 connects the module to the master module through the slave expander bus.
Connector P3 carries the inputs from the input cable plugged into the Termination Unit (TU) or Termination Module (TM).
The terminal blocks for field wiring are on the TU/TM.
