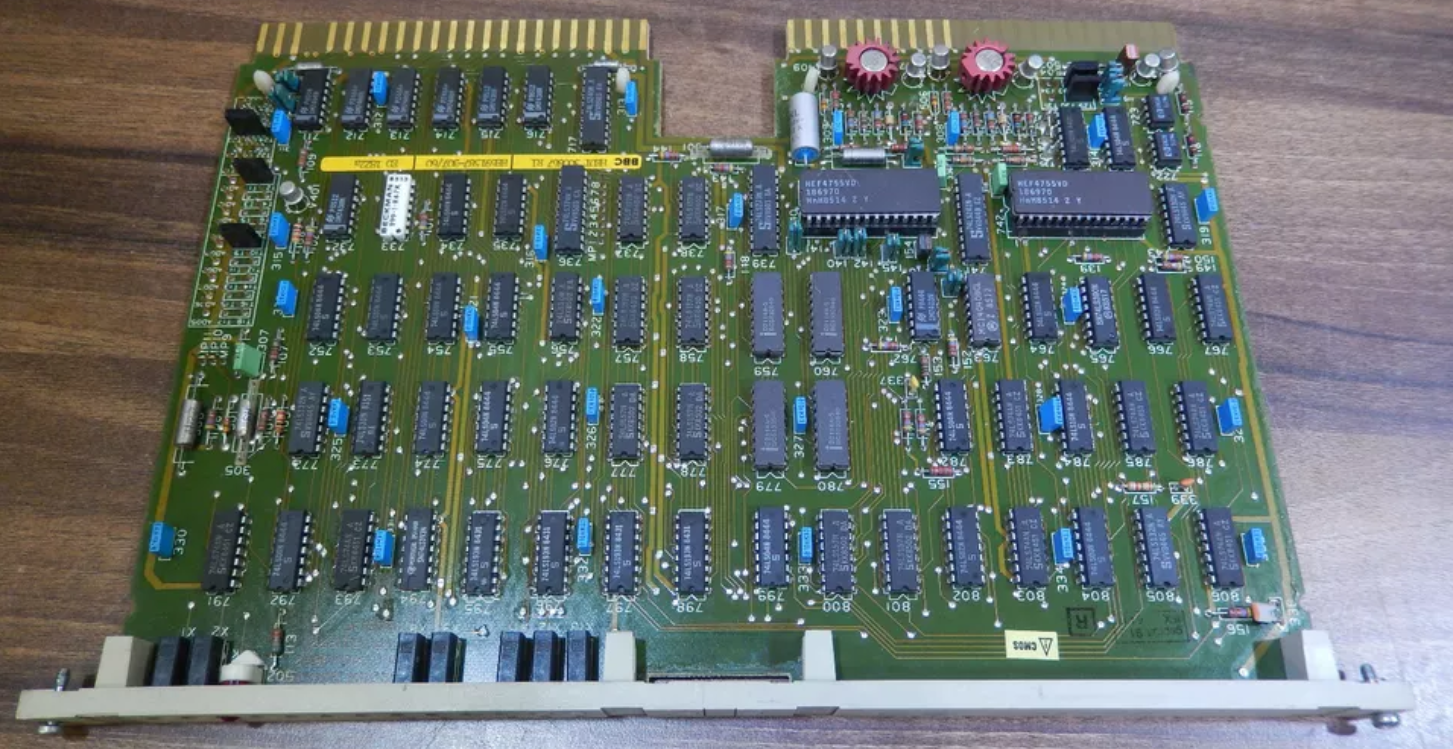

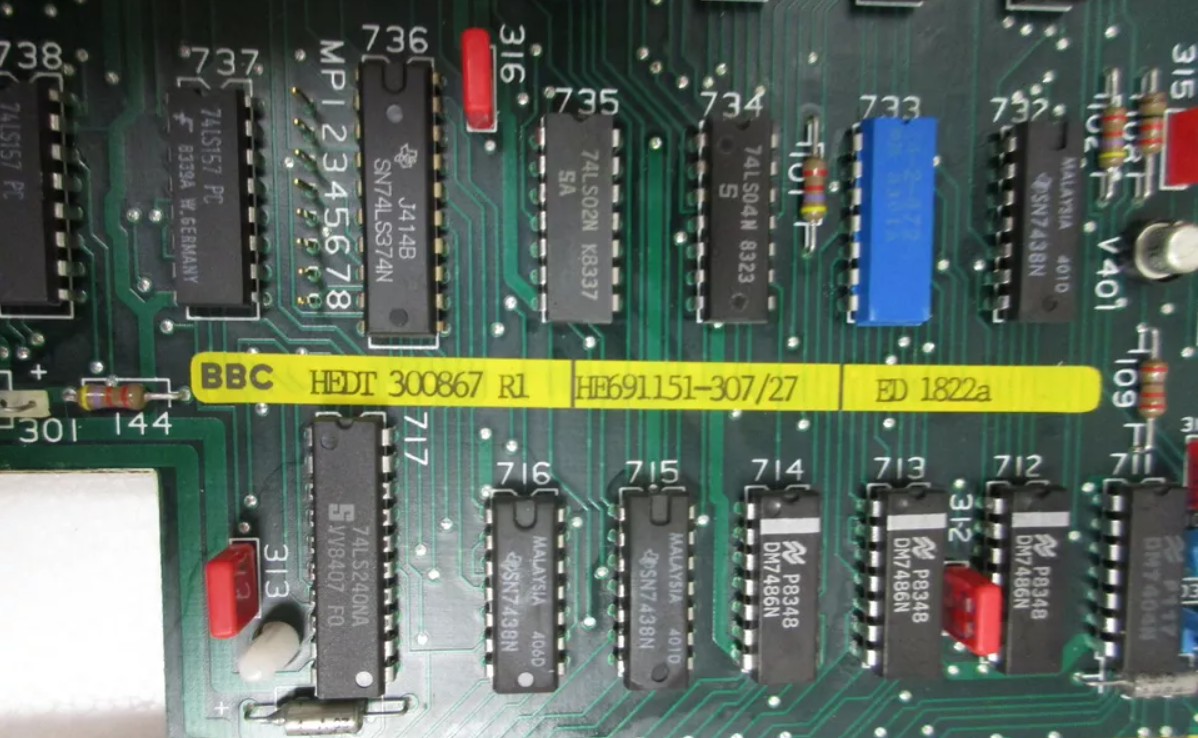

ABB ED1822A Brown Boveri Data Interface Board
Description
| Manufacture | ABB |
| Model | ED1822A |
| Ordering information | ED1822A |
| Catalog | VFD Spares |
| Description | ABB ED1822A Brown Boveri Data Interface Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
The ABB ED1822A Brown Boveri Data Interface Board
Features：
Designed to operate within 7.5 miles (12 km) of the host chassis, they have excellent immunity to static and electromagnetic interference.
Input/Output Modules • Digital input modules receive discrete signals at these nominal voltages: 115 VAC/VDC, 48 VAC/VDC, and 24 VAC/VDC. All voltages are available in TMR modules.
Non-TMR modules provide 24 VDC and 48 VDC power only. Speed input and totalizing modules are also available.
Monitored Digital Output Modules generate discrete output signals at these nominal voltages and provide diagnostics to field circuits
and load devices: 115 VAC, 120 VDC, 48 VDC, and 24 VDC
Digital output modules generate discrete output signals at these nominal voltages: 115 VAC, 120 VDC, 24, and 48 VDC. Dual output modules are also available.
The analog input modules accept the following types of analog signals: 0-5 VDC, -5 to +5 VDC, 0-10 VDC, and J, K, T, and E type thermocouples. Both isolated and DC coupled models are available.
The analog output modules drive eight 4-20 mA analog output signals. The high current AO module includes six 4-20 mA points and two 20-320 mA points.
