ABB DSTC190 57520001-ER Connection Unit
Description
| Manufacture | ABB |
| Model | DSTC190 |
| Ordering information | 57520001-ER |
| Catalog | Advant OCS |
| Description | ABB DSTC190 57520001-ER Connection Unit |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

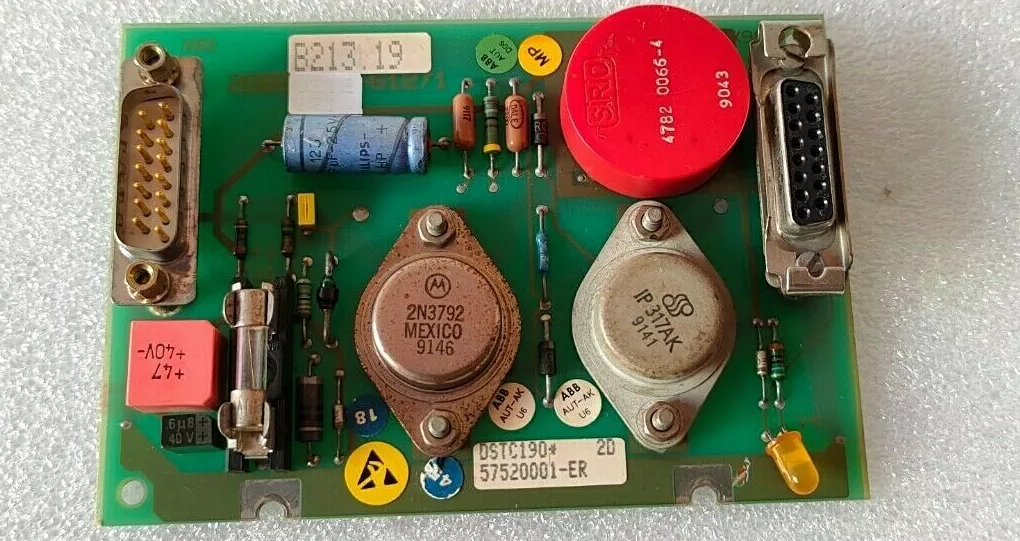

AAB DSTC190 57520001-ER is a connection unit made by ABB,
Function: It is designed for use with the IEEE 802.3 standard, which defines Ethernet networking. In simpler terms, it allows ABB equipment to connect to a standard computer network.
unit DSTC 190 mounted on a mountingbar DSRA at the rear of the cubicle.

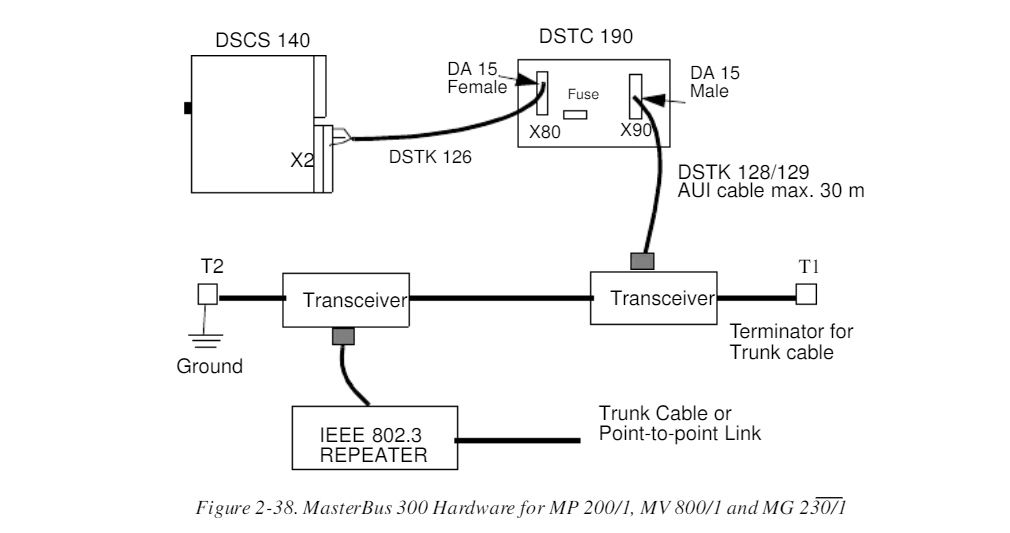

Advant OCS units are connected to the MasterBus300 physical link by means of a cable fromthe connection unit DSTC 190 to an IEEE 802.3 - 1985 transceiver.
The transceiver is attacheddirectly to the coaxial cable, seeFigure2-38.The transceiver, AUI cable, trunk coaxial cable and repeaters for MasterBus300 arecommercially available products that conform with the IEEE 802.3 - 1985 standard.
The TrunkCable Attachment Set below includes such products as recommended by ABB.
