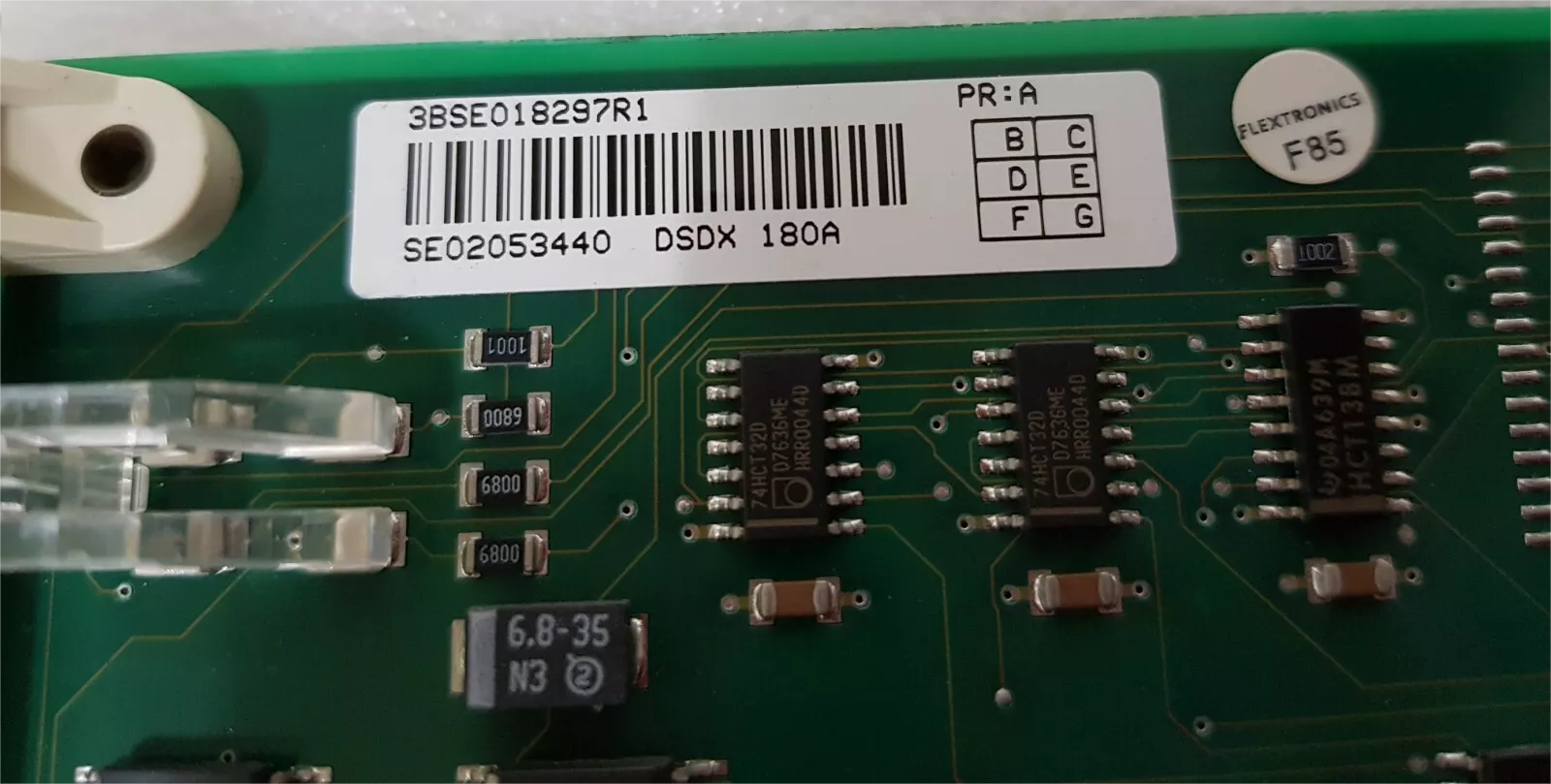

ABB DSDX 180/DSDX 180A 3BSE003859R1 Digital I/O Module
Description
| Manufacture | ABB |
| Model | DSDX 180/DSDX 180A |
| Ordering information | 3BSE003859R1 |
| Catalog | Advant OCS |
| Description | ABB DSDX 180/DSDX 180A 3BSE003859R1 Digital I/O Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

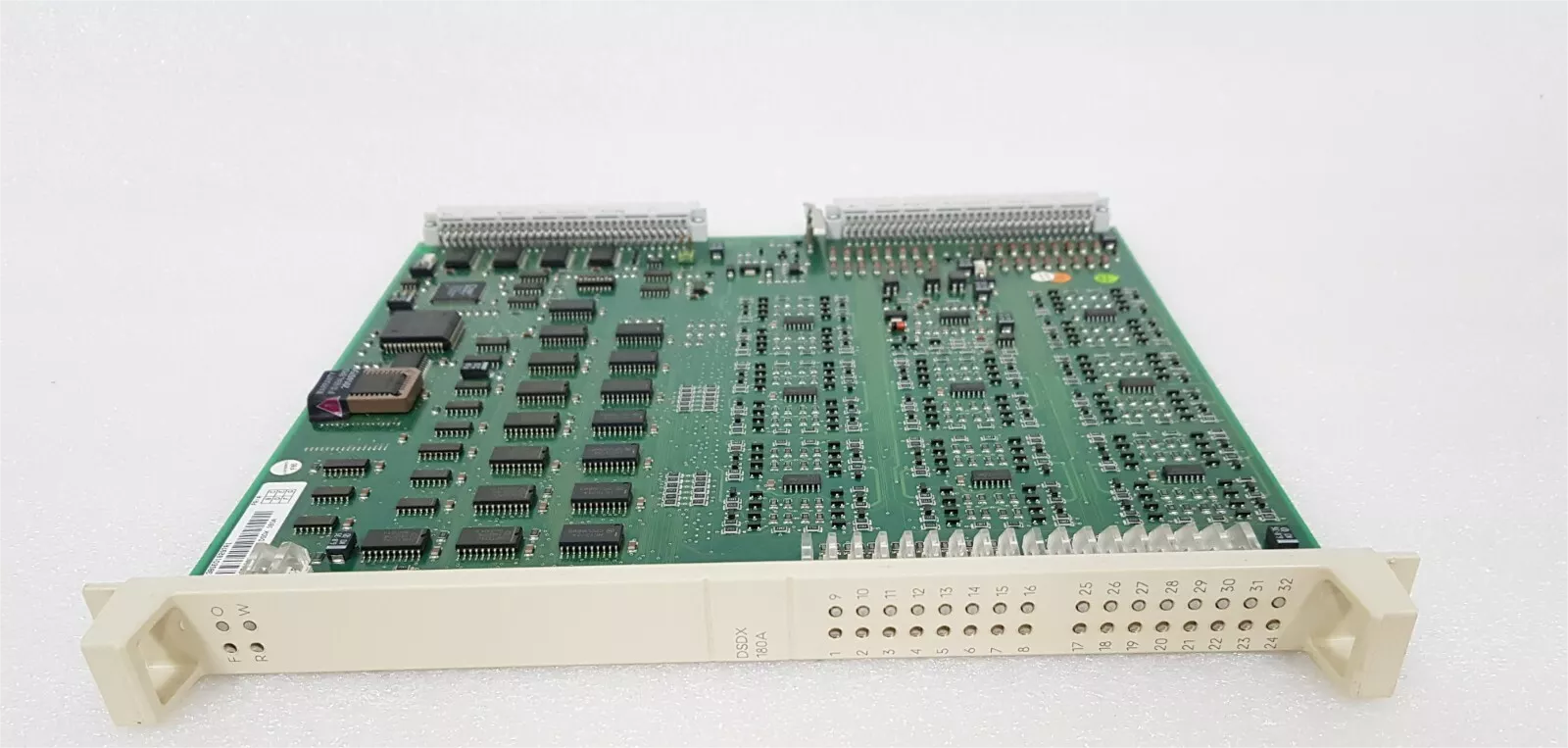

The DSDX180 Digital 1/0 board has 32 channels that can be individually configured for inputor output signals.
Each channel consists of an input buffer and an output latch which aresoftware controlled.
Six DSDXl80 boards (3 redundant pairs) connect to the TX513 Digital 1/0Conversion Panel using standard l/O interface cables.
The TX513 will allow the adaptation of the digital termination panels (605lN) to the S100digital //O module(DSDX180).
S
ignals interfacing to digital conditioning modules (of the Opto 22 variety) are routed toS100 Digital module type DSTX180.
One conversion panel supports the routing of four 605lN Digital Termination Panels to threesets of redundant DSTX180) modules.
