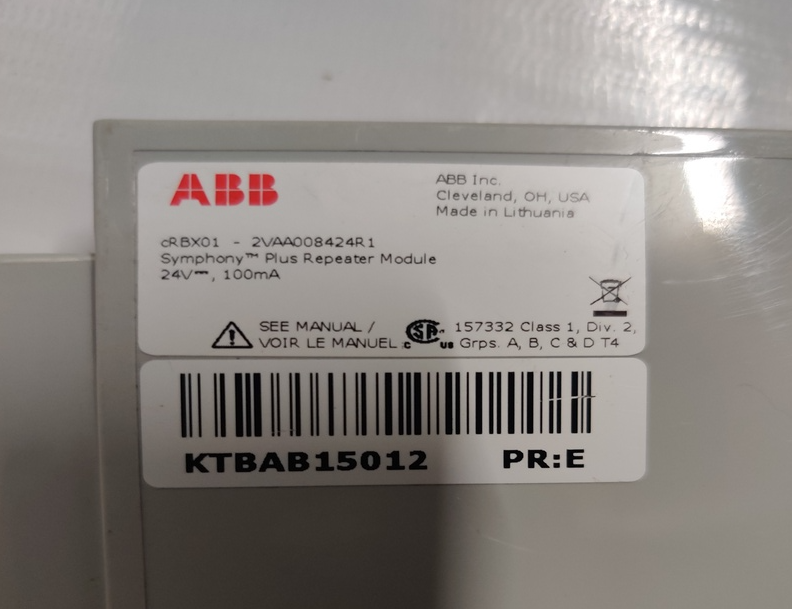

ABB CRBX01 2VAA008424R1 Remote Bus eXtender
Description
| Manufacture | ABB |
| Model | CRBX01 |
| Ordering information | 2VAA008424R1 |
| Catalog | Bailey INFI 90 |
| Description | ABB CRBX01 2VAA008424R1 Remote Bus eXtender |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details

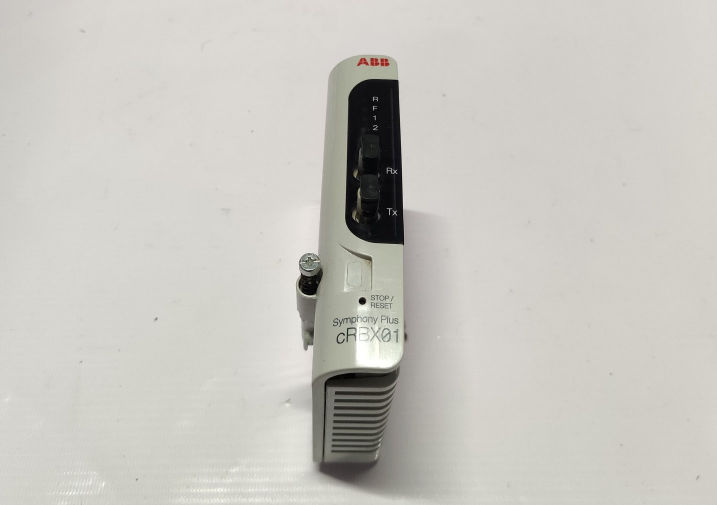

The cRBX01 Compact Remote Bus eXtender is the fiber optic repeater module for the redundant HN800 IO bus of Symphony Plus.
cRBX01 fiber optic repeaters transparently extend the HN800 IO bus of SPCxxx controllers.
cRBX01 repeaters need no configuration and remote IO or communication module have the same function, performance and capacity as local modules.
HRBX01K02 is a redundant repeater kit that includes: 2x cRBX01 modules + 1x RMU610 base.
Features and benefits
- cRBX01 fiber optic repeater module supports up to 60 HN800 devices per remote link.
- Fiber optic HN800 bus is a star topolgy (point-to-point) with up to 8 remote links per controller.
- Each remote link supports up to 60 HN800 devices (SD Series IO or communication modules.
- Using 62.5/125 µm Multi-Mode fiber optic cable with cRBX01 each link can be up to 3.0 km long.
General info
| Article number | 2VAA009321R1 (HRBX01K02) |
| Life cycle status | ACTIVE |
| Protocol | HN800 |
| Communication type | F. O. Repeater |
| Capacity | 60 HN800 devices (SD Series IO or Communications modules) |
| Transmission speed | 4 MBps |
| Communication connection(s) | 2x ST style connectors with right angle strain relief, 40 mm (1.5 inches) bend radius |
| Communication physical layer | 62.5/125 µm Multi-mode, -3.5 dB/km, graded index, 840 nm wavelength, 160 MHz/km Fiber Optic cable |
| Diagnostics port | 1x mini USB form factor on module front plate |
| Line redundancy | Yes |
| Module redundancy | No |
| Hot Swap | Yes |
| Form factor | Compact (127mm) |
| Mounting | Horizontal Row |
| HN800 bus length | 175 mm |
| MTBF (per MIL-HDBK-217-FN2) | cRBX01 PR: A = 73,170 hours, RMU610 PR: A = 10,808,478 hours |
| MTTR (Hours) | cRBX01 MTTR = 1 hour, RMU610 MTTR = 8 hours |
