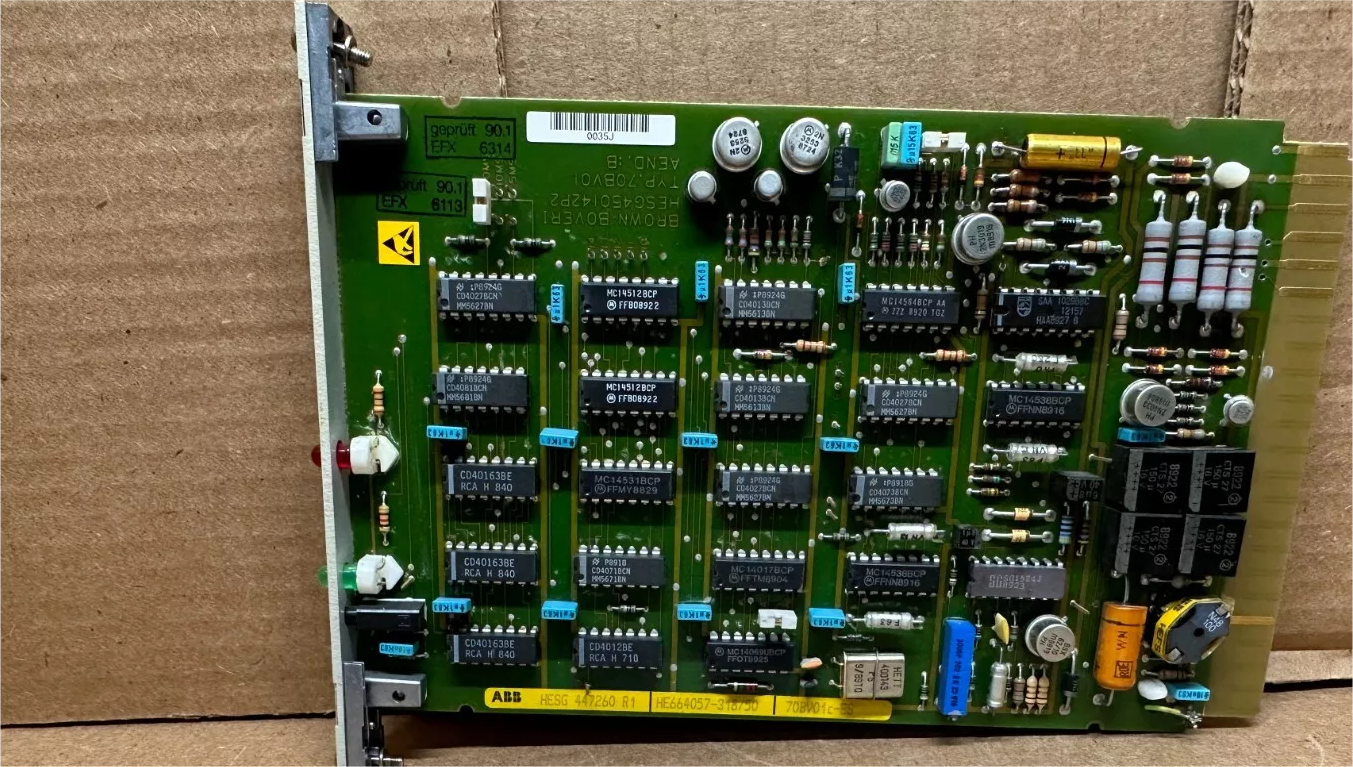

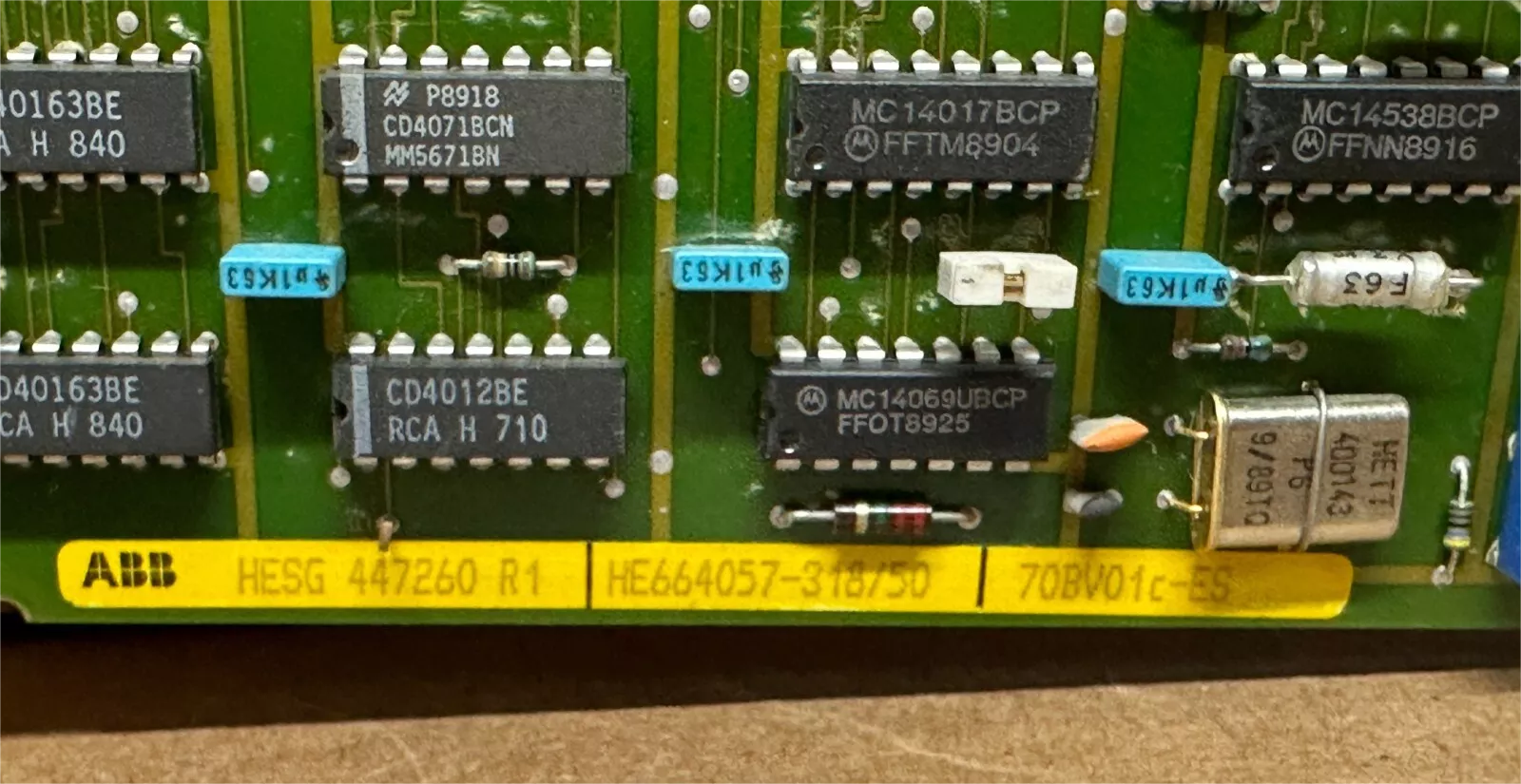

ABB 70BV01C-ES HESG447260R1 Bus Traffic Director Board
Description
| Manufacture | ABB |
| Model | 70BV01C-ES |
| Ordering information | HESG447260R1 |
| Catalog | Procontrol |
| Description | ABB 70BV01C-ES HESG447260R1 Bus Traffic Director Board |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm*16cm*12cm |
| Weight | 0.8kg |
Details
In the L-P PROCONTROL system, the signal value is reversed in order to confirm its value BUS TRAFFIC DIRECTOR 70BV01
It is the function of coordinating and arranging the flow of data through the bus from the CARD INPUT to the CPU and from the CPU to the OUTPUT
CARD, which displays data on the processor in the amount of 256 addresses within 20ms per cycle.
From the drawing, we notice that between each cycle and another cycle is 132µS, and between each address and address is 12µS, and it takes time to read each 64µS address, and the full cycle time to read 256 addresses is 20ms.
